Technical Forums» Forced Micras» My Little Beast Pt.2
|
Majiga » CMF Member bundaberg Australia Member since:  Posts:  |
My Little Beast Pt.2 |
Wed 14 Nov 2012 03:21:40 PM |
|
linking from my original page http://www.micra.com.au/community/message.php?messageid=75086

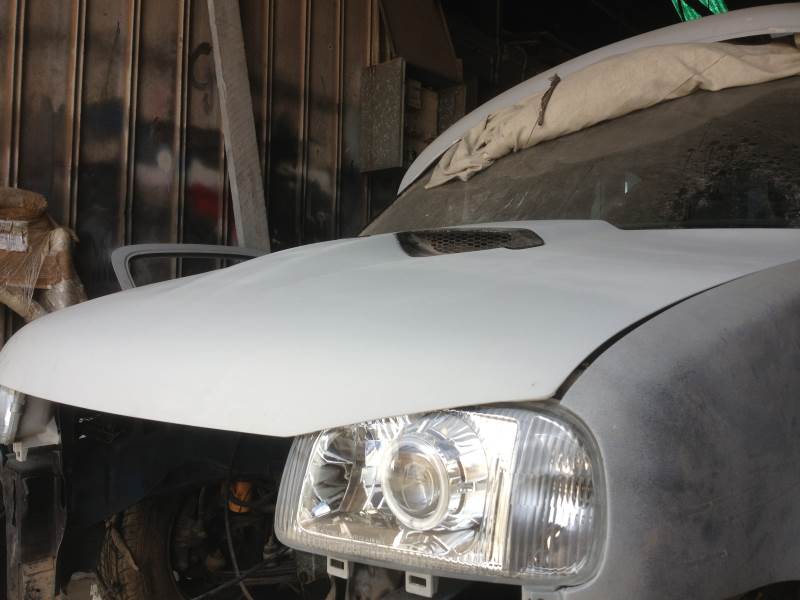

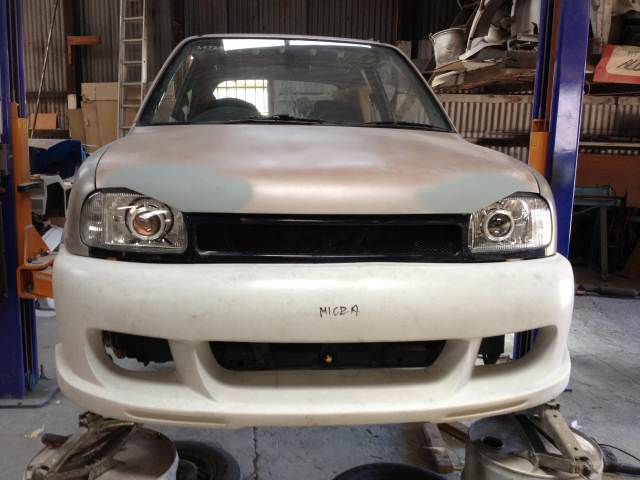

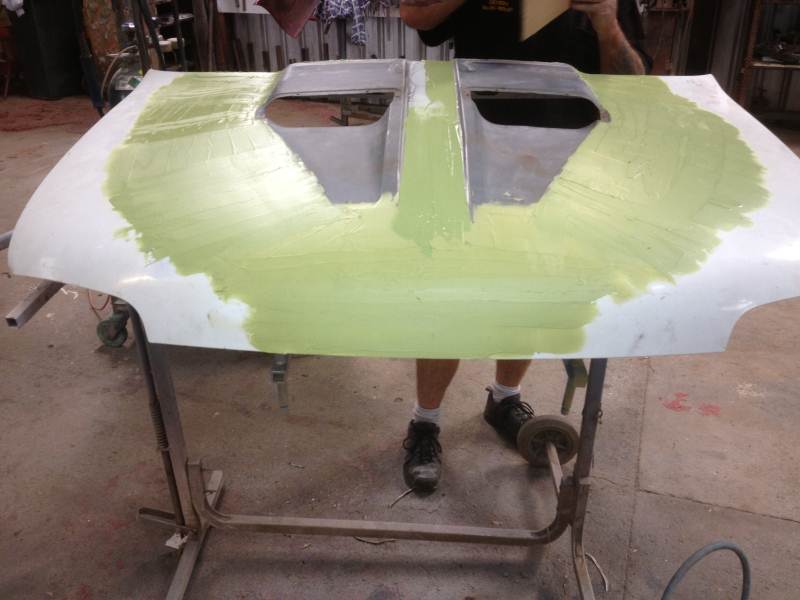

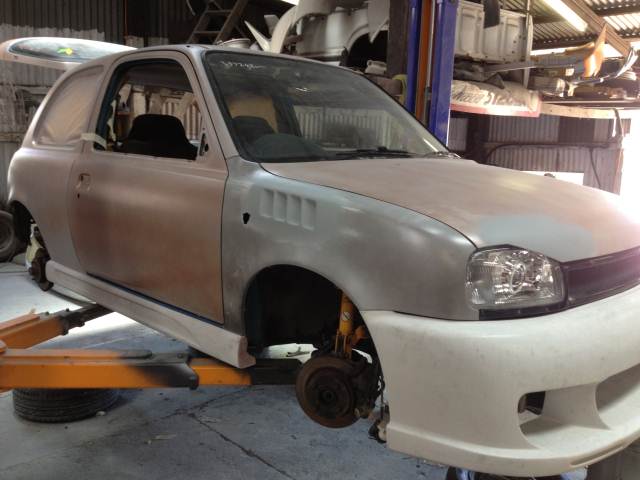

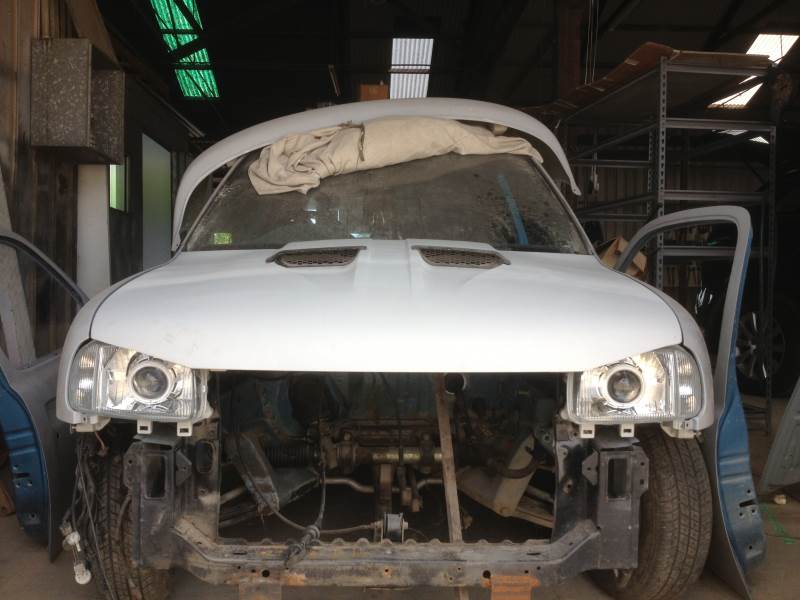

Body kit almost finished bad boy eyes to be smoothed out so they're not sharp edges. Have to fix the bloated anaconda looking front bar on the front bumper to make sure its all even. Side grills finished and side skirts on but not finished lining them up perfect. |
||
Image Attached:
|
||
|
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 14 Nov 2012 03:22:10 PM |
|
2
|
||
Image Attached:
|
||
|
DumpsterMummy » CMF Member Kingsley Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 14 Nov 2012 05:20:35 PM |
|
Looks proper tuff, those front guards are the business!
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 14 Nov 2012 07:07:04 PM |
|
Looks good only dislike is that badboy bonnet! Not bad enough
|
||
|
hotfunk67 » CMF Member Sydney Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 14 Nov 2012 10:18:04 PM |
|
That is one big arse bumper
|
||
|
OZChris » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 14 Nov 2012 10:20:32 PM |
|
Looks good - what colour are you thinking?
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 14 Nov 2012 10:36:21 PM |
|
EDIT - (Heron White). and yes its bloody huge that bumper i always have the super s bumper as back up if its just too stupid once together but i think i'll live with it.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Thu 15 Nov 2012 04:28:43 PM |
|

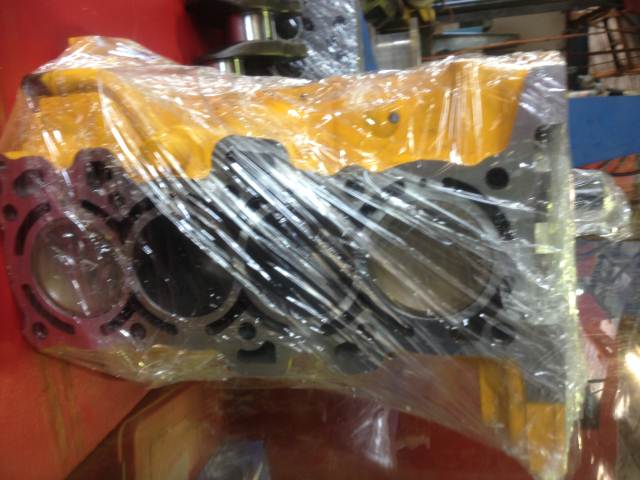

putting the bottom end together was an ABSOLUTE C**T the par rods were big fat bastards bangin on everything had to very carefully grind them free in the bottom of the piston sleeve. But 3 Times lucky we got it to all turn smoothly.
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 19 Nov 2012 10:39:39 PM |
|

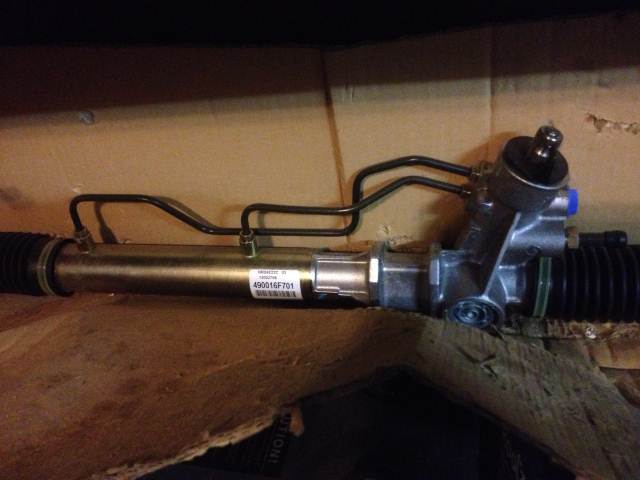

brand new power steering rack arrived today from england at 1/4 of the cost to get from nissan $280 delivered gotta love scratch and dent sale the original box was ruined so they couldn't sell it full price.
|
||
Image Attached:
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 19 Nov 2012 10:53:03 PM |
|
Majiga WROTE: "putting the bottom end together was an ABSOLUTE C**T the par rods were big fat bastards bangin on everything had to very carefully grind them free in the bottom of the piston sleeve. But 3 Times lucky we got it to all turn smoothly." you cut into the rods ? :o |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 19 Nov 2012 11:21:26 PM |
|
nah we die grinded the underside of the piston sleeves took 10 hours to do it avoiding water jackets and oil gallies. was actually pretty scary lol
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 19 Nov 2012 11:43:16 PM |
|
thats a relief then :) here,s my (longer throw) CGA crank kissing the oil return fitting
http://www.youtube.com/watch?v=P8IdxLhBAKk&list=UUShAHt9QG4e1Znr-pxWt7UQ&index=15&feature=plcp |
||
|
SSUK » CMF Member London United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 04:32:26 AM |
|
Majiga WROTE: "putting the bottom end together was an ABSOLUTE C**T the par rods were big fat bastards bangin on everything had to very carefully grind them free in the bottom of the piston sleeve. But 3 Times lucky we got it to all turn smoothly." Majiga WROTE: "nah we die grinded the underside of the piston sleeves took 10 hours to do it avoiding water jackets and oil gallies. was actually pretty scary lol" One guy here in the UK took his engine to a builder and they ground them, ruining the set of forged rods in the process. Some people really shouldn't be in the engine building game! Interesting there is still a clearance issue even with the re-designed par rod. Perhaps they are using a larger 3/8" ARP fastener rather than the more common 5/16" on a rod that size. |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 08:17:57 AM |
|
yeah it was the way the rods are shaped down to the fastner and the height of the fastner. Engine builder says if i ever drop a bearing i'm in trouble.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 06:36:36 PM |
|

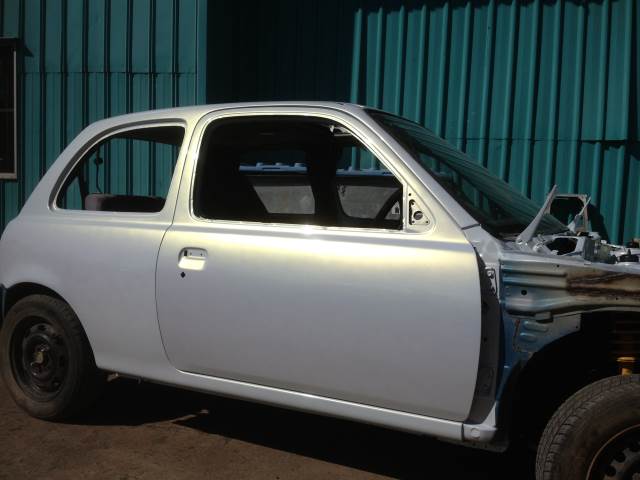

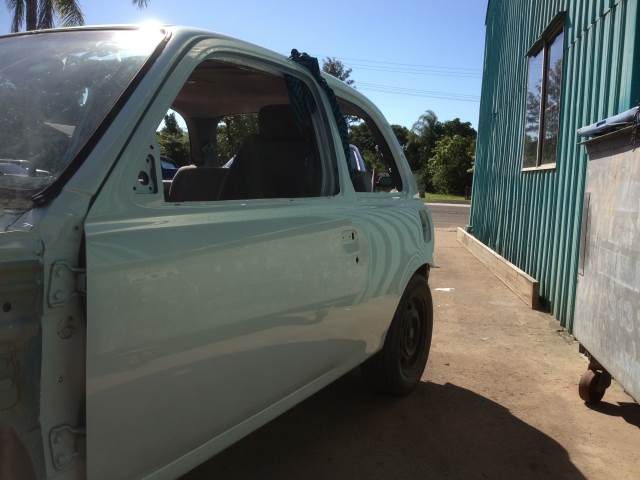

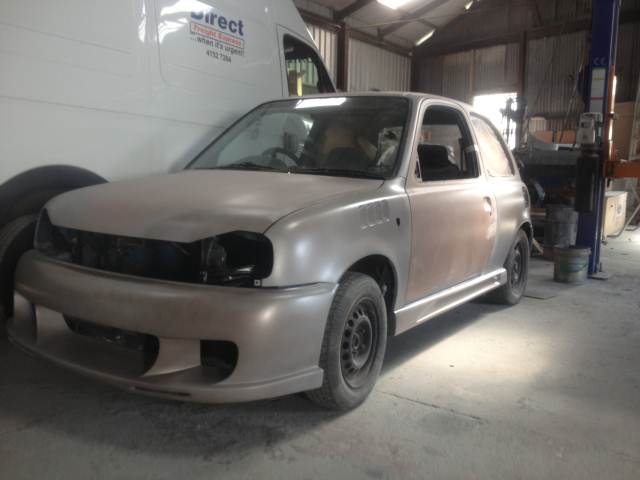

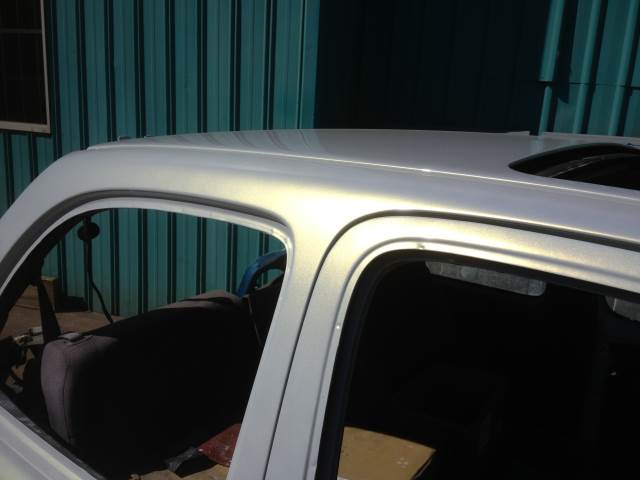

almost ready for colour
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 06:38:37 PM |
|

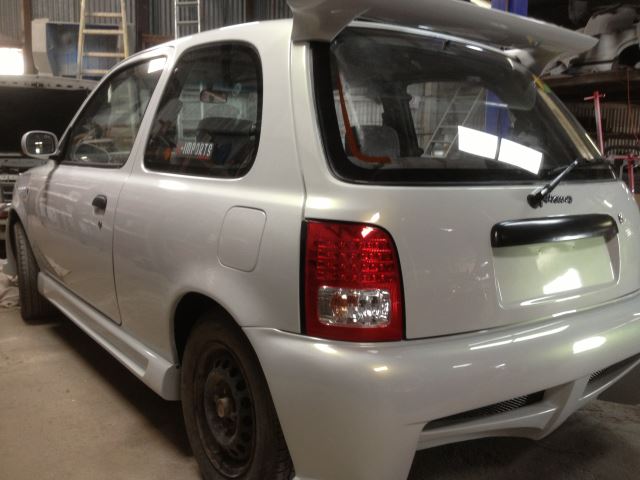

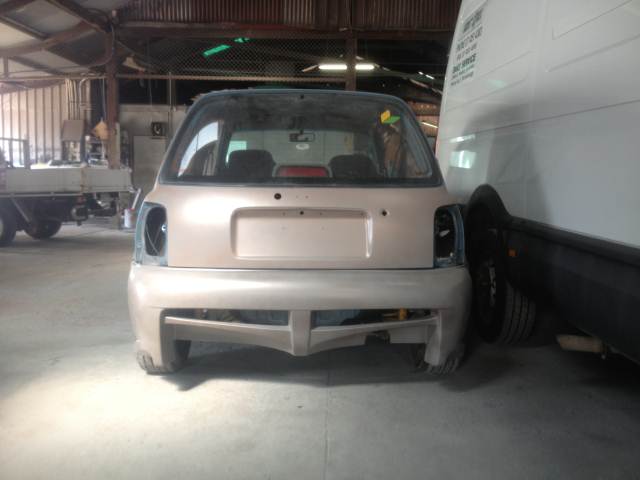

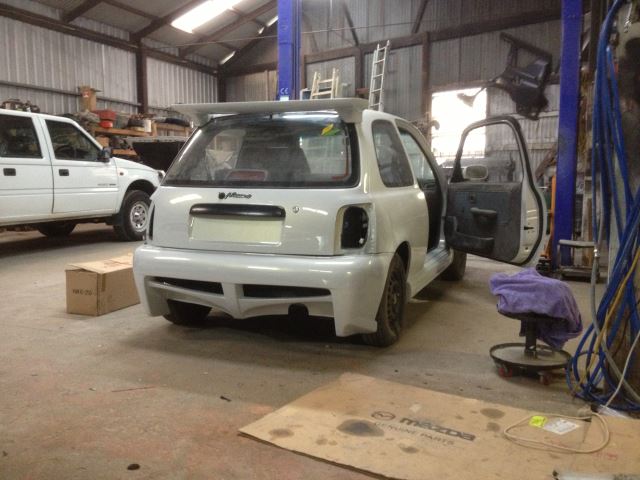

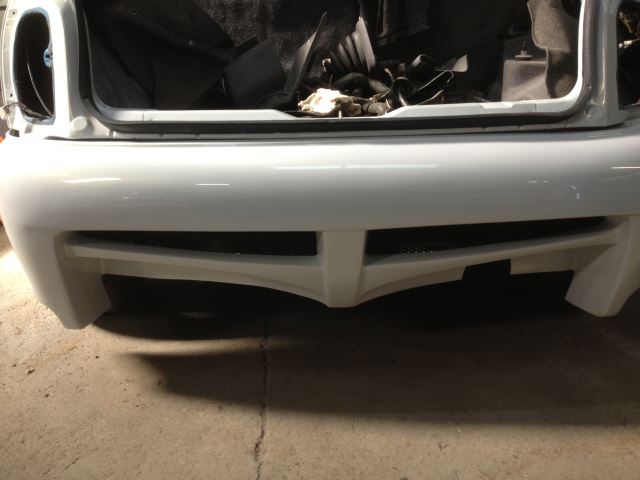

rear view, none of its bolted up its just hangin from the bolts.
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 06:39:36 PM |
|

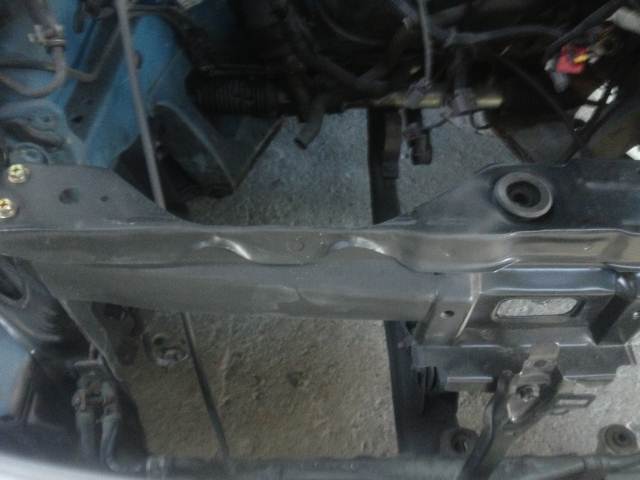

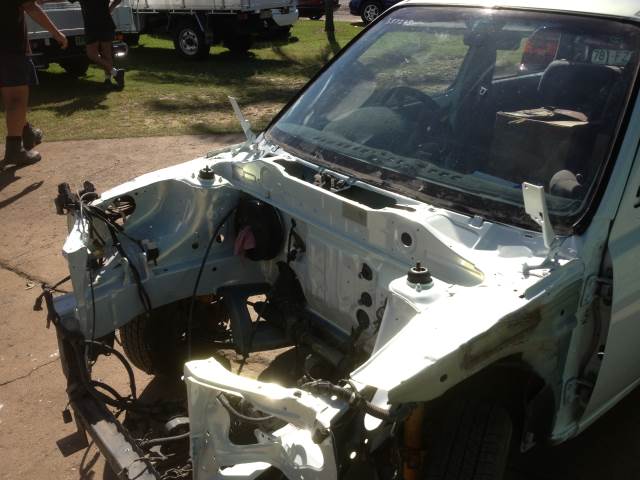

New Radiator support
|
||
Image Attached:
|
||
|
DumpsterMummy » CMF Member Kingsley Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 06:41:58 PM |
|
Looking sick man. Have you thought about perhaps filling in where the hatch handle and license plate sit? keeping it clean down the whole hatch I think would look mean.
Either way, mad car. :D |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 06:45:10 PM |
|
nah i was going to keep it as it is, if i ask for another change the painter will put the gloves on and wanna go a few rounds lol
|
||
|
DumpsterMummy » CMF Member Kingsley Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 06:54:36 PM |
|
Haha, take him!
exciting times, when is it due for paint? |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 20 Nov 2012 07:42:11 PM |
|
2 weeks, leaving the undercoat settle properly before final smoothdown
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 23 Nov 2012 11:48:22 PM |
|
First round of intercooling system tests went well. Dropped 10 Litres of water from 30 degrees down to 10 degrees in 20 minutes. The Aquarium chiller runs damned near silent. Caravan water pump flows at a good stable speed. Inverter drained no power from the battery running the chiller while the motor runs. But like a refrigerator the chiller has the awful knocking of the compressor when it gets bumped. Need to pull it apart and stabilize it from underneath with rubber matting and some strong zippy ties so it can't bounce around and all should be fine.
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 24 Nov 2012 07:48:39 AM |
|
Majiga WROTE: Inverter drained no power from the battery running the chiller while the motor runs" Of course it won't, the battery is a power source to the starter motor to get the engine running then once it's runs the alternator takes over |
||
|
OZChris » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 24 Nov 2012 08:02:26 AM |
|
That's a mad looking rear bar :)
|
||
|
Doom » CMF Member Adelaide Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 24 Nov 2012 10:52:55 AM |
|
Bloody hell few dollars been spent here
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 24 Nov 2012 02:23:22 PM |
|
lol alot of bad mistakes and man hours too haha
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 26 Nov 2012 05:40:18 PM |
|
Organised RS5F31v today cv shafts and joints for $800 delivered. got Bents Engineering going to adjust the super fat shafts to fit properly will post pics when i get it all done.
|
||
|
SSUK » CMF Member London United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 26 Nov 2012 08:46:52 PM |
|
Great price on the box, they cost a sweet penny to get over from Japan with matching shafts.
Remember to flick through kovert/tmrs build thread regarding the box modifications needed to mate it up properly to the block and selector if yours is an early K10 bellhousing. |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 27 Nov 2012 07:06:57 PM |
|
nah came from n15 sss 2.0l pulsar got the super fat shafts and cv ends and they threw the abs hubs with abs sensor in for $220 more.
|
||
|
deNs » CMF Member Melbourne Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 27 Nov 2012 10:42:58 PM |
|
Majiga WROTE: "First round of intercooling system tests went well. Dropped 10 Litres of water from 30 degrees down to 10 degrees in 20 minutes. The Aquarium chiller runs damned near silent. Caravan water pump flows at a good stable speed. Inverter drained no power from the battery running the chiller while the motor runs. But like a refrigerator the chiller has the awful knocking of the compressor when it gets bumped. Need to pull it apart and stabilize it from underneath with rubber matting and some strong zippy ties so it can't bounce around and all should be fine." I can't know for sure, but I have a feeling you're going to run in to troubles when the system is in place and you're hoping to cool down the intercooler in a similar way to how water-to-air intercoolers work on Subaru's and the like. How big is the compressor? 1/5hp? 1/6hp even? If you don't know, post up what's stamped on the compressor if you get a spare minute as I'd be interested to see what you're using. I spent a number of years watercooling my computers, ultimately moving on to single-stage refrigeration with systems that are probably functionally identical to yours. They are often overengineered but small units like the one I imagine you might be trying to use aren't designed to be used with a big heat load. I discovered that myself when using a system designed to cool down a computer chip and attempting to cool some water pumped into a coil of beer wort (part of the process of homebrewing) and it simply couldn't keep up. That was a 1/4HP unit that I pulled from a standard size fridge/freezer. The chiller adds another complexity as you're having to cool the water to cool the intercooler and I'd put a big bet on the water heating up a lot faster than it can be cooled, and you'll end up pumping warm water around. It's a good idea but one that I think will bring you more headaches than it's worth. Kudos for trying something a bit left-field though :) Good luck! Edit: Also, did you do the projector lens conversion yourself? I ALWAYS wanted to do that! Awesome. ---dens |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 27 Nov 2012 11:14:43 PM |
|
Dens the compressor says on the side of it 1/15hp. the chiller i have is used to cool down 40 gallons of water down to freezing temps. large fish tanks. but it seems the compressor is pretty small. From what im reading on 4x4 forums the temps going into the plenum are from 30-45 degrees on a 25 degree day using liquid to air intercooler. If i can get the water to remain around 25 degrees with the chillers help i may gain a stable feed of temp to the intake. Lol i could always chuck the resovoir of water into a waeco chiller for double chill. take a packed lunch too lol.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 27 Nov 2012 11:52:44 PM |
|
quick test would be set slow cooker on 45 degrees and have it in the system and see if the chiller combats the temps or use a hair dryer blowing through the intercooler . thx dens testing to do lol.
Edit after testing with various methods i think its time to come back down to earth and change my headers and dump and get myself a 600x300 fmic setup. costs cash saves brain strain. |
||
|
kovert.k11 » CMF Member onjomama Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 30 Nov 2012 11:16:33 PM |
|
Majiga WROTE: "nah came from n15 sss 2.0l pulsar got the super fat shafts and cv ends and they threw the abs hubs with abs sensor in for $220 more." true story? sure it's a rs5f31v?? http://www.genis-x.com/index.php?k=Automotive&id=493517 n15 31v - GA15/16DE...no 2.0L bro... |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 03:19:00 AM |
|
kovert.k11 WROTE: true story? sure it's a rs5f31v?? http://www.genis-x.com/index.php?k=Automotive&;id=493517 n15 31v - GA15/16DE...no 2.0L bro..." maybe a 32v eh ? |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 07:40:15 AM |
|
thank you guys and yeah thats the first question i asked them they said yeah is the 31v ringing them this morning to make sure everything is correct before they send it on a crate. kinda sick of wasting money on this project i shoulda let my missus just burn it.. i did msg kovert about the correct set up he had for sale for $1700 to no avail or answer (must have ended up in junk). i was only told what the wreckers told me that yes it was a 31v. i guess ill be correcting them tyvm kovert for pointing this out saved me tons of stress. could have done without the true story though :( as far as i knew it was
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 08:20:00 AM |
|
yup and you guys were right they were all 32v not 31v refunded and start again. If anyone has one of these rs5f31v boxes let me know got cash sittin here to buy it from you. (very frustrating)
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 08:43:13 AM |
|
I thought Tyrie was parting one? Or is that sold?
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 08:48:46 AM |
|
nah he got two 31a's and the shafts for the 31v's
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 09:16:17 AM |
|

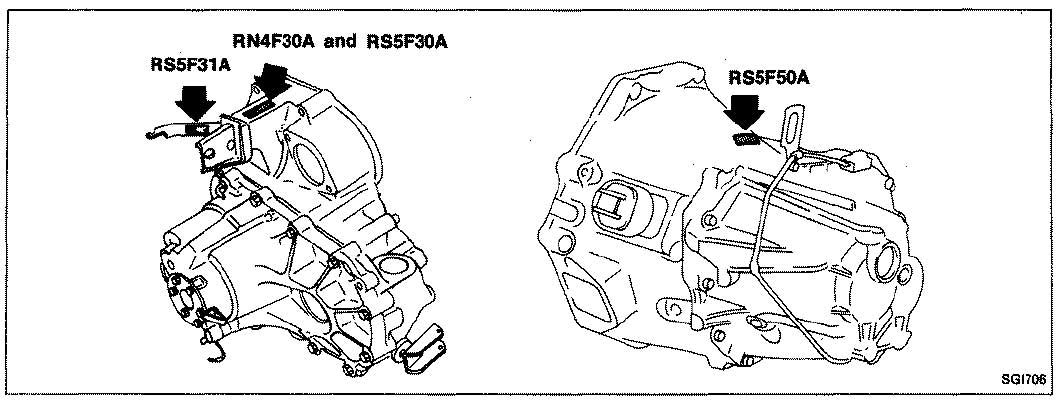

the g/box code is a sticker on the clutch arm on 31,s apparently eh, and stamped onto the casing on the 30,s
|
||
Image Attached:
|
||
|
SSUK » CMF Member London United Kingdom Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 10:16:25 AM |
|
It will be a miracle if there's an original sticker left though ;)

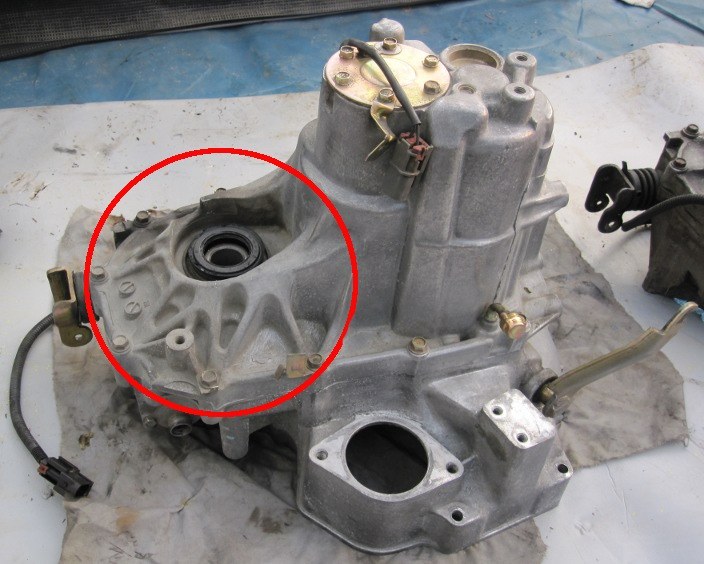

Far easier to identify by the giveaway vLSD casing, as highlighted. As for the ratios, only way to tell them is to open the box or source one from a reputable source who knows their oats. |
||
Image Attached:
|
||
|
kovert.k11 » CMF Member onjomama Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 03:25:26 PM |
|
got 31v box and shafts mate - but are in a car that will be up for sale very soon - and not willing to part out - so if u want the box, u'll have 2 take the whole shabang...which probably isn't gonna help u out i'm assuming...got no idea what i'm doing with the box+shafts from the turbo car - do have the dog box setup sitting here, but that project has been put back as TMRS & i are in the process of building a 32gtr
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 01 Dec 2012 05:30:03 PM |
|
well what ill do is, wait, put in my old original unknown modification box in until something becomes available. if you do get the time to get your dog box in and get the turbo gearbox out give me a yell.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 07 Dec 2012 09:14:09 AM |
|
intercooler arrived this morning off to the paint shop to get fitted. 600 x 300 aero 2
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 11 Dec 2012 10:12:05 PM |
|

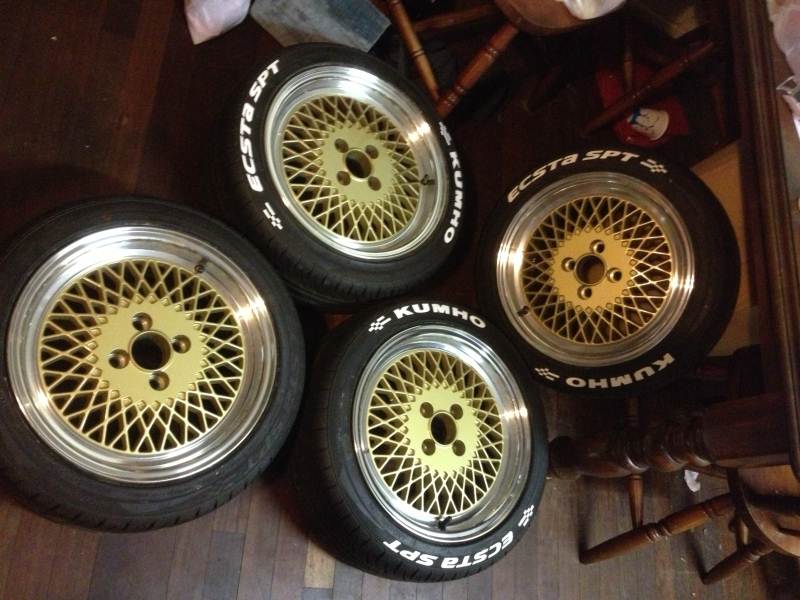

havin fun with rubber tyre paint from the uk. one to go!
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 14 Dec 2012 09:58:58 AM |
|

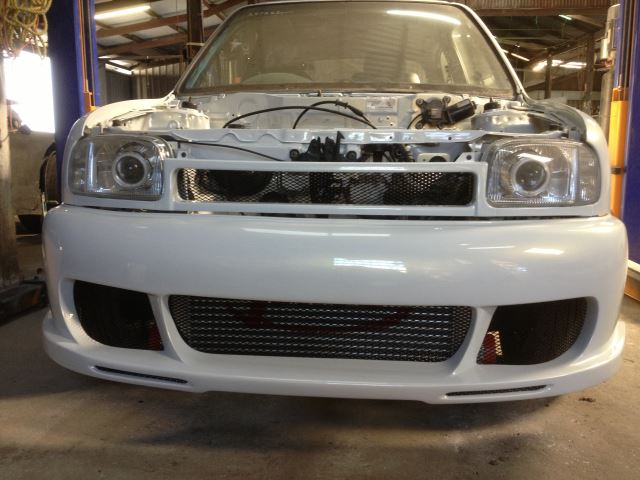

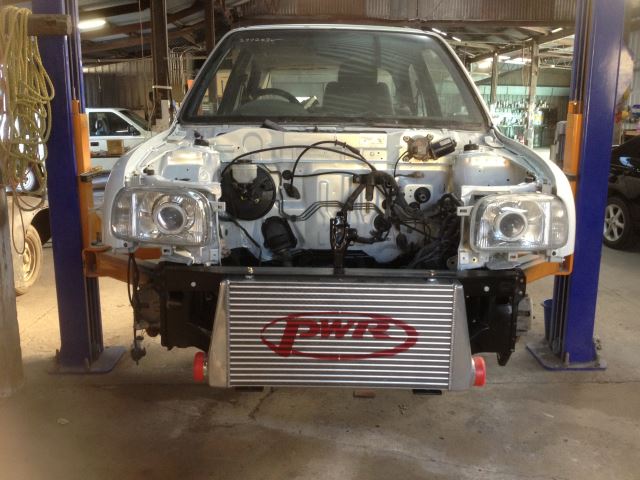

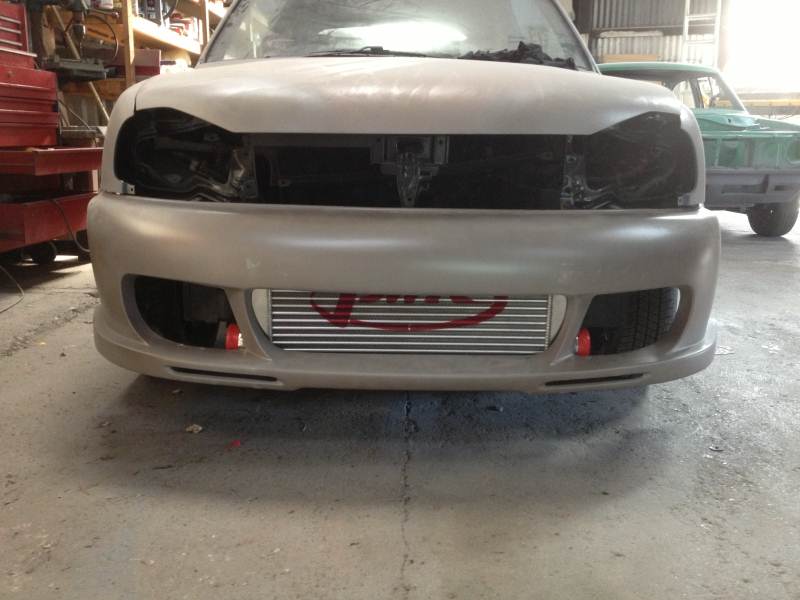

intercooler mounted. bumper trimmed back to fit. little bit more fiddling to get the side pipes to fit but lookin good.
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 14 Dec 2012 10:01:38 AM |
|

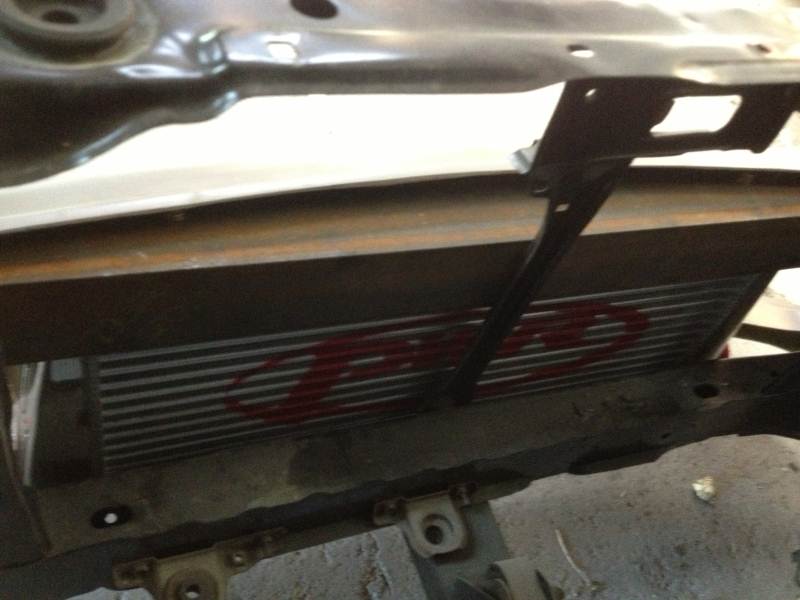

sucker is so heavy we used 3 inch angle iron to hold it still. welded tabs for bolting at the bottom. Used full length of angle to secure the top. ridiculously strong.
|
||
Image Attached:
|
||
|
cisco » CMF Member Canberra Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 15 Dec 2012 11:42:28 AM |
|
That thing is a complete weapon. Looks so tough!!!
Awesome work... FYI - the bottom of my PAR rods also fouled the piston housings, so they were also carefully ground off on blue monster. |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sun 16 Dec 2012 10:27:03 AM |
|

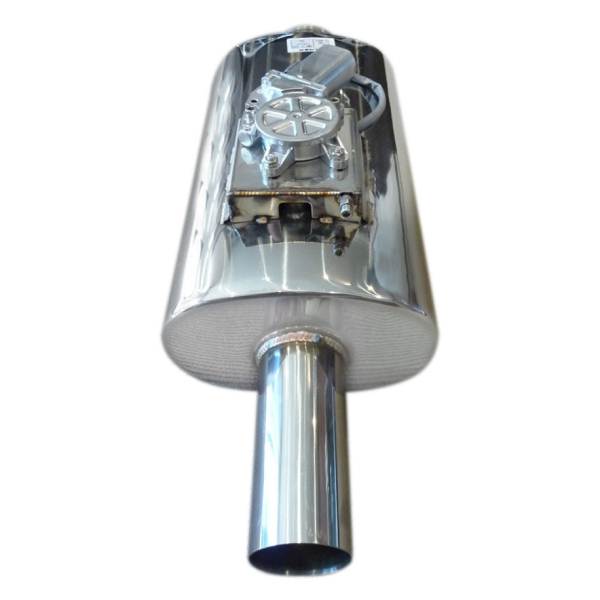

muffler choice 2.5 in and out turns up tomorrow :)
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sun 16 Dec 2012 10:27:56 AM |
|

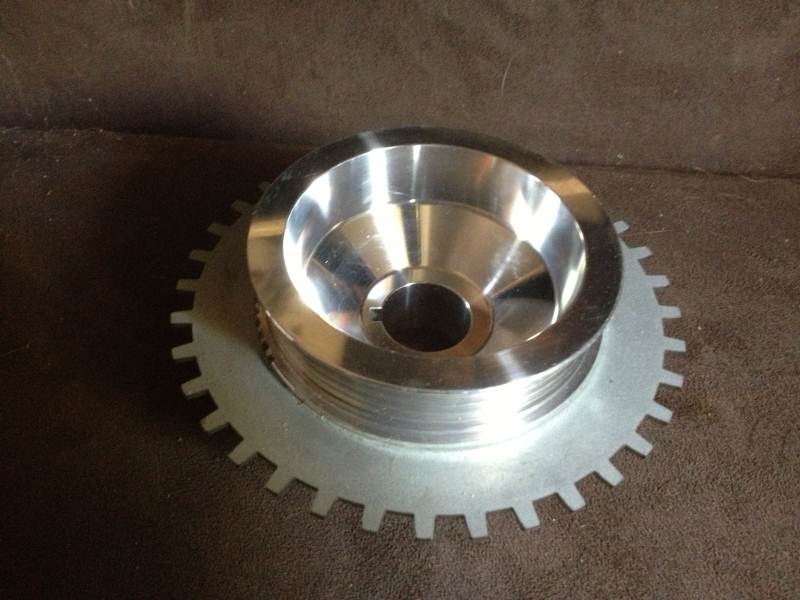

front pulley arrived from matt humphris this week :)
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sun 16 Dec 2012 10:29:29 AM |
|

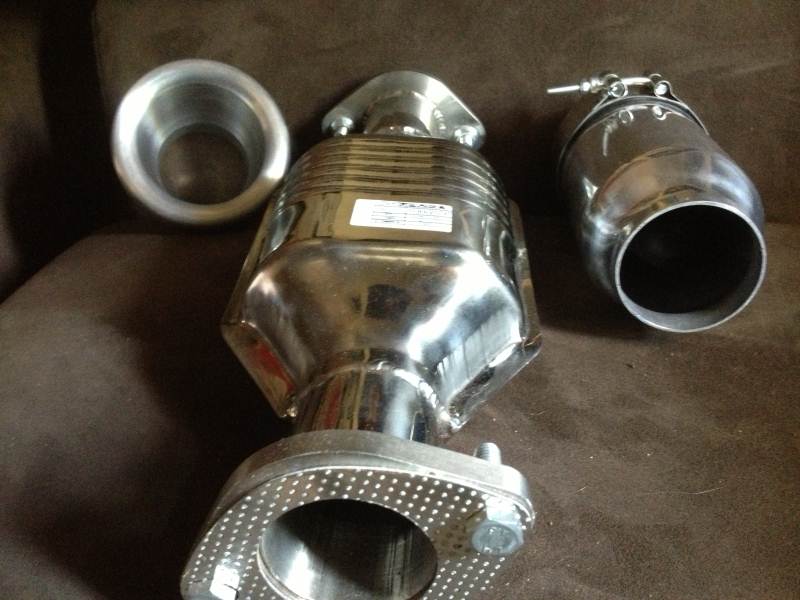

more shiny bits x-force cat, air filter trumpet end and a closed off air filter box with removable washable filter.
|
||
Image Attached:
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sun 16 Dec 2012 10:42:19 AM |
|
ETC? I think April?
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sun 16 Dec 2012 10:58:14 AM |
|
yeah im planning to have it done latest june, april would be a dream with the rate people do things in my town.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 19 Jan 2013 12:08:34 PM |
|

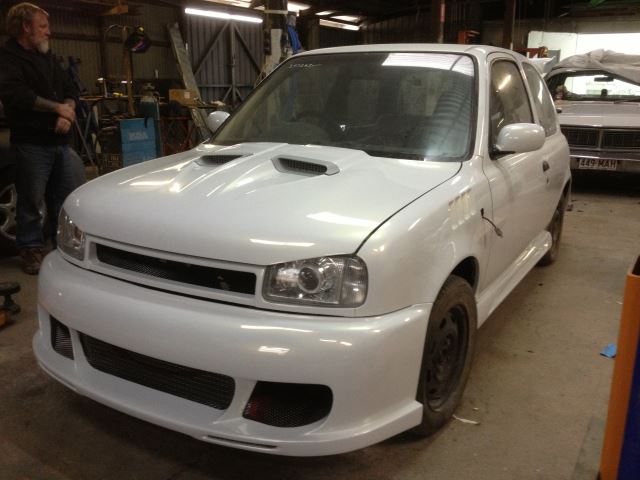

little update - new bonnet being made with badder badboy eyes custom ford xc bonnet (after seeing micra-man's i couldn't help myself) had an xc bonnet and grills sittin around i thinned in the centre to make it more like mustang nostrils and not so much like micra-man's. Big ass truck in the way of my car being painted but its due for the booth in 2 weeks. Valves have finally got here doing all the final flow bench tests getting everything mathematically correct before i send it off to be ceramically coated. Rs5f31v and nismo shafts organised . not far now boys and girls a few months to go :) ill post pics monday of the bonnet once my mate has got it together.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 28 Jan 2013 12:19:21 PM |
|
well i may not have a car anymore its on the other side of that water lapping at the back door of the shop its now 9.3 and rising.
|
||
Image Attached:
|
||
|
Danvillan » CMF Member Mulgoa Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Mon 28 Jan 2013 02:06:36 PM |
|
Sad too hear heaps of $$$ put into the build hopefully it all turns out alright, more importantly hope everyone up there stays safe and not to much damage is caused. Take care.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 08 Feb 2013 09:09:46 PM |
|
well the bastards at the smash repairs let it sit in the shed on the floor, locked the building and ran. i finally get hold of them today and they casually tell me - yeah! it went up to the bottom of the seats. didn't touch the dash or anything. but we ripped out your carpets and sprayed it clean. we will waterproof and rust inhibit it for you. im still not sure what to think exactly. luckily, only good parts stuck on it were suspension. but, it should be ok. the water wasnt salty but hitting 9.6m water level here in bundaberg was bloody high. have to wait about a month before they're allowed to get back to it and paint it as the shed it's in is almost condemned at the moment.
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 08 Feb 2013 09:58:30 PM |
|
If they have to wait another month before they can go back in, the bottom of your car would be fuck! What about the body kit? That still on the car?
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 08 Feb 2013 10:37:55 PM |
|
they're doing emergency water repairs in the shed they just cant use their booth. the body kit was off of it as were the doors.
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 09 Feb 2013 10:25:11 AM |
|
both plastic filler and primers are porous, this could lead to humidity blisters in paint later on or delamination of plastic filler from steel
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 09 Feb 2013 10:46:36 AM |
|
yeah well they'll have to fix it if it turns out as such. just the sills and underbody got drenched, i'm pretty sure they will redo the sills thats not a big job the bodykit escaped the water it was on the shelves at the side of the shop with the doors not on the car. luckily i hadn't put in my brakes and new wheel bearings yet.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 15 Feb 2013 11:08:14 AM |
|
the boys are back in business got the bonnet started now cleaned all silt from the car letting the fiberglass kit sit in the bake room to dry. still got to add my badder bad boy eyes lol!
|
||
Image Attached:
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 15 Feb 2013 11:28:47 AM |
|
With the bad boy bonnet go corner to corner
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 15 Feb 2013 12:23:44 PM |
|
lol yea bro just how u like em haha maybe a slight curve in em so theyre not a dead straight line
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 15 Feb 2013 01:08:40 PM |
|
Haha sweet! That's how a bad boy nooner should be! I am looking forward to getting mine done
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Thu 28 Feb 2013 12:22:44 PM |
|
bonnet is finished
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Thu 28 Feb 2013 12:23:09 PM |
|
2
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 17 Apr 2013 02:47:41 PM |
|
4 layers of heron white 3 layers of zircon moonbeam pearl tint 3 layers of clear
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 17 Apr 2013 02:48:08 PM |
|
2
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 17 Apr 2013 02:48:30 PM |
|
engine bay
love the gold flashes |
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 17 Apr 2013 02:48:50 PM |
|
passenger side
coming together almost there ill have a pic of it all as one in a week or so |
||
Image Attached:
|
||
|
Pierce » CMF Member Logan Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 17 Apr 2013 06:19:04 PM |
|
Looking good mate,
I tried to contact Humphries via email, no response :( I want that pulley too... |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 17 Apr 2013 09:13:31 PM |
|
0011 44 1865 748000 is the number to call him anytime after 6pm qld time he'll be just getting into work. credit debit card is needed.
|
||
|
Pierce » CMF Member Logan Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Thu 18 Apr 2013 12:23:51 AM |
|
Yeah, I can't call international from my location, maybe I should throw some money onto skype...
sides look very straight and clean, are you doing anything to the door handles or just going stockos? |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Thu 18 Apr 2013 07:32:06 AM |
|
nah just stocko's gotta leave some micra bits on it lol leaving the door trims on too.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 21 May 2013 01:19:54 PM |
|
Paintwork redone with a different formula so there was no change in color between doors, guards and rear quarter panels. Changed spraying technique to a crosshatch pattern to cover the base lines all worked out pretty well. Rear hatch, impul wing, bonnet and bodykit being sprayed this week and fitted. Valves and springs finally turned up but the valves seemed soft, weren't hard enough so they've been sent away for hardening. Vlsd gearbox on its way if e-go can get a working vehicle to pick it up. Getting very hard to put this beast together with the intended spec list, but im almost there chippin it away one thing at a time.
|
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 31 May 2013 08:47:13 AM |
|
Interesting solution for the badlook bonnet, loved that detail. Awesome threads!! :)
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 14 Jun 2013 04:01:16 PM |
|
undercar all cleaned up and blackened putting it back together begins'
|
||
Image Attached:
|
||
|
Danvillan » CMF Member Mulgoa Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 14 Jun 2013 05:58:30 PM |
|
How much clearance is there going to be for the intercooler, just looks low. Or is it the angle of the photo, is the bottom level with the lower radiator support?
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 15 Jun 2013 02:30:35 AM |
|
yes its level with the bottom of the radiator support and the angle of the photo. you can see the two forklift style brackets that hold it at the bottom they were welded on to the underneath of the support. put it this way i won't be dropping it on it's guts lol.
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 19 Jun 2013 02:20:46 PM |
|
front grille and bumpers done so you can see where it all sits now.
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 19 Jun 2013 02:21:58 PM |
|
rear bumper
|
||
Image Attached:
|
||
|
RBLUV » CMF Member Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Wed 19 Jun 2013 10:58:20 PM |
|
looking good so far dude!
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 21 Jun 2013 03:04:52 PM |
|
getting there slowly
|
||
Image Attached:
|
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 21 Jun 2013 03:07:20 PM |
|
back
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Fri 21 Jun 2013 05:35:31 PM |
|
real nice, cant wait to see it with some nice wheels
|
||
|
habib93 » CMF Member brisbane Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Sat 22 Jun 2013 12:56:55 PM |
|
if you ever sell it... which i cant see you selling it for a long time if you do but if you ever want to sell this work of art. i want it !! so call me 1st ahahah :)
just thought i would get in 1st ahahahah |
||
|
Majiga » CMF Member bundaberg Australia Member since: Posts: |
Re: My Little Beast Pt.2 |
Tue 02 Jul 2013 04:35:43 PM |
|
blackened the outer edges of the famous red led lights
|
||
Image Attached:
|
||
