OIl Feed Line |
Tue 31 Jan 2012 10:46:29 PM |
|
Hey all,
Just wanting to know where the best place to hooking to for the main oil passage for my turbo conversion, i know my return is straight into my sump :) I read on here somewhere you hook into the back of the block? any help with this would be greatly appreciated Cheers RTK |
||
|
|
||
|
asdame » CMF Member United Kingdom Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 06:03:58 AM |
|

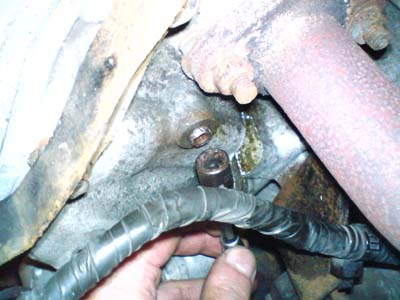

take this allen head bung off. it'll prob be lock-tighted on so the allen could round off. best try a helical bolt extractor
|
||
Image Attached:
|
||
|
asdame » CMF Member United Kingdom Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 06:04:21 AM |
|

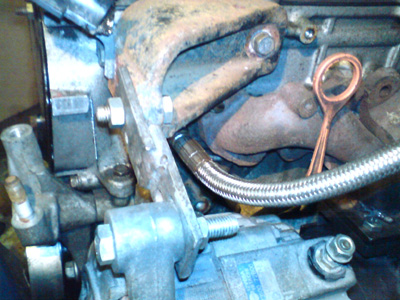

then attach an oil feed to it
|
||
Image Attached:
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 07:19:57 AM |
|
Awesome thanks :)
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 07:23:30 AM |
|

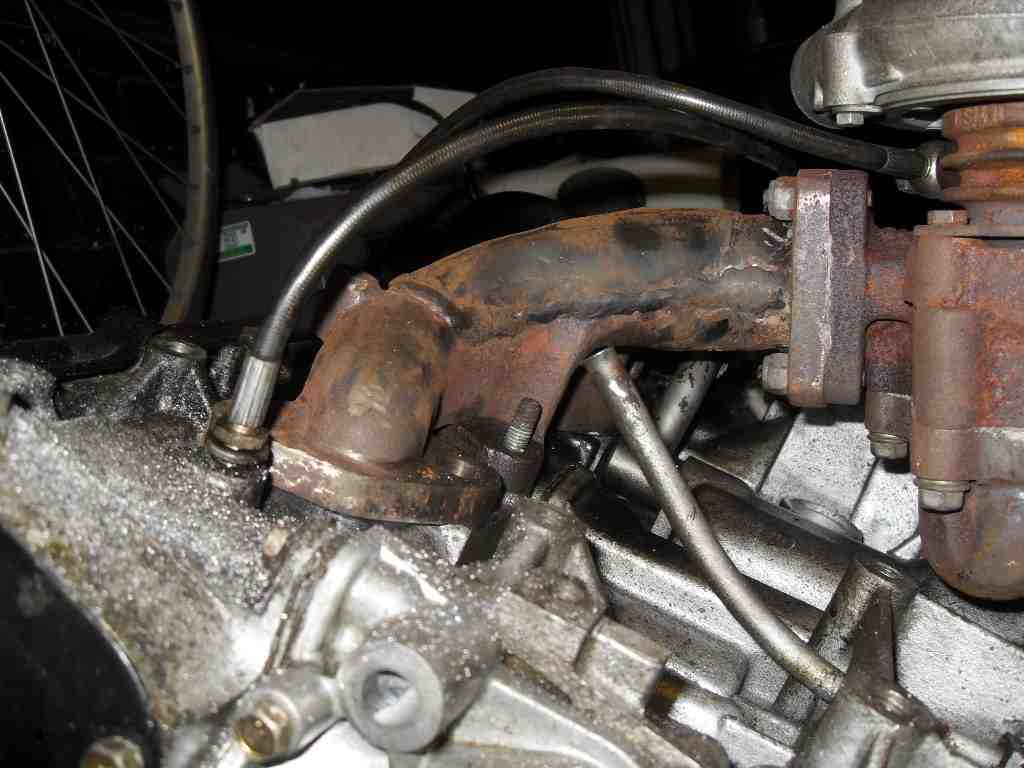

or else use a kart brakepipe :)
|
||
Image Attached:
|
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 07:57:04 AM |
|
haha frank you and your crazy antics :) but ill probably go braided for safety :)
|
||
|
deNs » CMF Member Melbourne Australia Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 10:18:17 AM |
|
RTK WROTE: "haha frank you and your crazy antics :) but ill probably go braided for safety :)" Frank's does appear to be braided, and within a plastic sheathing - so realistically it's better than just braided hose on its own. An alternative to using that oil gallery port (as people have raised the issue of oil supply to there in the past) is to use a sandwich plate for the oil filter and use a fitting off that. ---dens |
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: OIl Feed Line |
Wed 01 Feb 2012 10:30:24 AM |
|
deNs WROTE: " RTK WROTE: "haha frank you and your crazy antics :) but ill probably go braided for safety :)" Frank's does appear to be braided, and within a plastic sheathing - so realistically it's better than just braided hose on its own. An alternative to using that oil gallery port (as people have raised the issue of oil supply to there in the past) is to use a sandwich plate for the oil filter and use a fitting off that. ---dens" Thanks dens, that's what I read then, and they had like a restricter on the line also so not to much all gets pumped in |
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: OIl Feed Line |
Sun 05 Feb 2012 01:41:49 PM |
|
deNs WROTE: " RTK WROTE: "haha frank you and your crazy antics :) but ill probably go braided for safety :)" Frank's does appear to be braided, and within a plastic sheathing - so realistically it's better than just braided hose on its own. An alternative to using that oil gallery port (as people have raised the issue of oil supply to there in the past) is to use a sandwich plate for the oil filter and use a fitting off that. ---dens" or even easier and cheaper is to run a tee off the factory oil pressure switch. least then you know if your turbo is getting oil pressure or not. |
||
|
RTK » CMF Member Australia Member since: Posts: |
Re: OIl Feed Line |
Sun 05 Feb 2012 02:21:34 PM |
|
Thanks TMRS was thinking that too but wasn't sure
|
||
