Technical Forums» Forced Micras» What Air Flow meter to use for Turbo project??
|
Radiolite22 » CMF Member Singapore Singapore Member since:  Posts:  |
What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 05:11:02 AM |
|
Hi Guys,
I'm thinking what kinda Air Flow Meter you guys used for ur turbo setup?? Is SR20 or Q45 MAF sensor a good choice? No not, what else can be used? I'm running on Emanage Blue ecu. Probably considering an upgrade if it doesn't work... Pls advise ;) Regards, Keith |
||
|
|
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 05:35:32 AM |
|
Go straight to a stand Alone ecu like the Autronic I use. No air flow meter needed
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 05:55:26 AM |
|
sikK11 WROTE: "Go straight to a stand Alone ecu like the Autronic I use. No air flow meter needed " you would need a MAP sensor tho surely ? |
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 06:27:25 AM |
|
Yep but no afm which makes it alot easier and one less thing To go wrong seem as though Nissan afm always fail
|
||
|
mycra » CMF Member melbourne Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 10:13:48 AM |
|
Mass air sensor/ air flow meter what's the difference... Thought they are the same..
|
||
|
deNs » CMF Member Melbourne Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 11:33:11 AM |
|
mycra WROTE: "Mass air sensor/ air flow meter what's the difference... Thought they are the same.." A MAF (Mass Air Flow) or AFM (Air Flow Meter) both measure the mass/volume of the air in the intake. We're talking about MAP vs AFM. The difference being that the MAP sensor calculates the air density from the manifold pressure and is what most people will use when running a standalone ECU in their project. People especially tend to do this with their K11's due to the issues people experience generally with the AFM. ---dens |
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 12:04:44 PM |
|
What dens said. Nissan afm are renown fir being unreliable I went through three with my skyline before putting the microtech in and pissing it off. Mass air flow versus manifold absolute pressure. Map is also easier to tune apparently though not sure why
|
||
|
mycra » CMF Member melbourne Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 03:02:57 PM |
|
So how( difficult ) do you go about bolting a map sensor on to the manifold in the cg13. Do you wire it to the afm wires??
|
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 04:52:51 PM |
|
My setup is done through just replacing the throttle body to a map sensor one from a pintara and wire it in to the input on the ecu
|
||
|
mycra » CMF Member melbourne Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 07:44:11 PM |
|
I am on my 4th throttle body man... its draining and frustrating. whats the best way about fixing it. i have a SR20 with adaptor plate but how do i go about the throttle swith motor and AFM??
ITS DOING MY HEAD IN!!! |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 08:09:28 PM |
|
mine,s been running a GA16 t/b for years, notoriously reliable :)
you would probably have to cut an idle control valve off and pipe it in remotely mycra |
||
Image Attached:
|
||
|
mycra » CMF Member melbourne Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 08:59:30 PM |
|
frank2 WROTE: "mine,s been running a GA16 t/b for years, notoriously reliable :) you would probably have to cut an idle control valve off and pipe it in remotely mycra " pipe it remotely because it doesn't fit in? |
||
|
Radiolite22 » CMF Member Singapore Singapore Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Wed 19 Jan 2011 10:54:31 PM |
|
I have a SR20 Throttle body with adaptor ready to be installed into my car.
Would need to know what MAF sensor would be suitable to use for Emanage-Blue application? Or is it better to ditch the emanage and go for "Link Engine Management" standalone instead?? |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Thu 20 Jan 2011 02:24:41 AM |
|
mycra WROTE: pipe it remotely because it doesn't fit in?" because an sr t/b is just a butterfly and tps aint it ? (ie, no i/c/v or maf or map) |
||
|
Radiolite22 » CMF Member Singapore Singapore Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Thu 20 Jan 2011 02:43:06 AM |
|
Hi Franks,
Do you have a clearer view of how the AAC is setup? I mean how is it linked up... |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Thu 20 Jan 2011 03:56:01 AM |
|

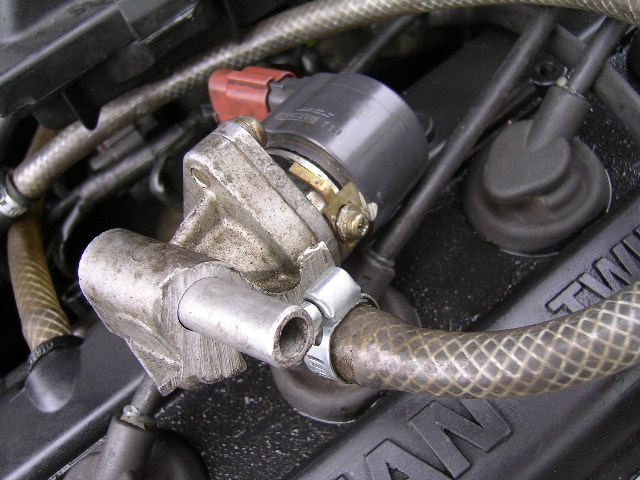

Radiolite22 WROTE: "Hi Franks, Do you have a clearer view of how the AAC is setup? I mean how is it linked up..." its just a variable airleak into the manifold keith (controlled by the ecu) like if you pull a vacuum pipe off and the revs pickup i cut mine off a CG t/b and rammed a pipe into the ports, then piped the inlet side of the i/c/v to a manifold breather/vacuum fitting |
||
|
mycra » CMF Member melbourne Australia Member since: Posts: |
Re: What Air Flow meter to use for Turbo project?? |
Thu 20 Jan 2011 11:38:53 AM |
|
Mm Thanks for the replys frank2
|
||
