Hi everyone, started painting my little red machine last weekend and thought Id record its progress. Just finished priming it today.
1995 LX tacho dash, pulsar switchgear( r/h blinker), popout r/windows + int trims, sup.S doortrims, USB player & Sony explods, lowered springs and shocks, pod filter, extractors, sports exhaust, replaced gearbox & clutch, done oil leaks, 2x engine mounts, heater blower card, resoldered throttle body Still to fit, have complete rear disc setup, air con, custom grill, coming from Japan now a sup.S bar & lights + rear spoiler with tailight Wishlist !!!, bolero/rumba taillights and rear bumper, hot motor, nicer wheels, swaybars Special thanks to my mate Ed who without, this paintjob would never happen. Everybody should have a mate like Ed |
||
|
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 09:42:02 PM |
|

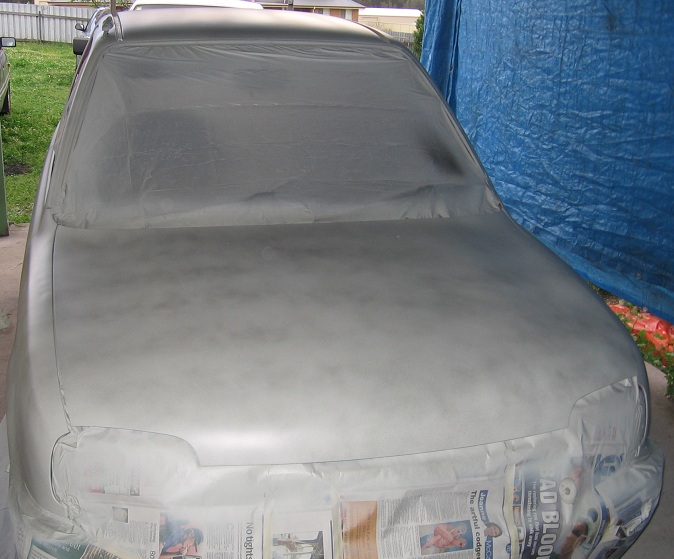

primed with guide coat
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 09:50:18 PM |
|

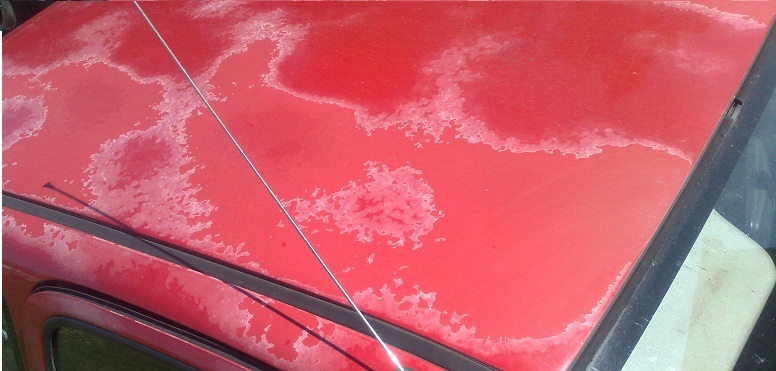

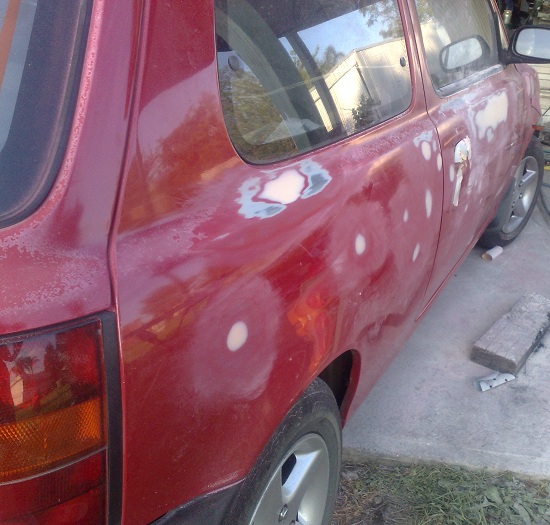

Bad Sunburn!!
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 09:56:14 PM |
|
roof half sanded
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 09:59:16 PM |
|
LowMicra WROTE: "Y is one door on and one off?? Or is that one a spare??" Its a better one off my sup.s wreck, the bootlid is off my other wreck |
||
|
mycra » CMF Member melbourne Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:01:47 PM |
|
looks like skin cancer.
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:04:25 PM |
|

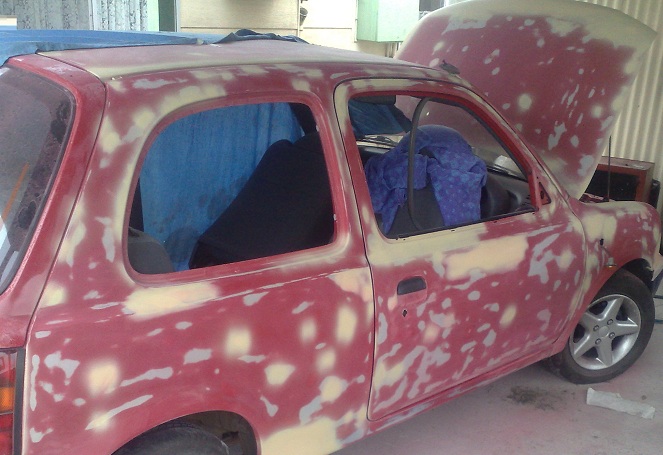

a little bit of bog here and here and here and here........
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:06:05 PM |
|
mycra WROTE: "looks like skin cancer." no rust but no clear left either |
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:12:36 PM |
|
more bog
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:20:26 PM |
|

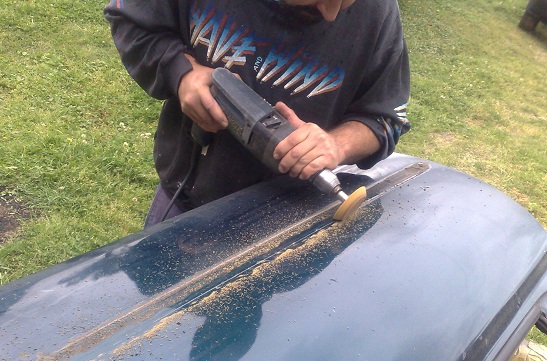

caramel wheel
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:26:50 PM |
|

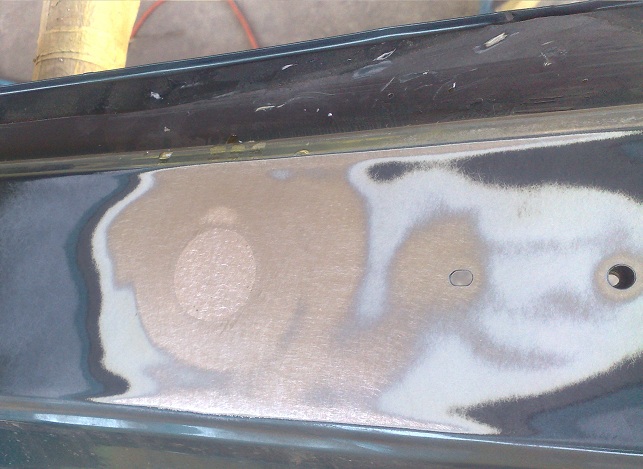

rear wiper removed and lead loaded
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:33:42 PM |
|
lotsa sanding
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:39:07 PM |
|

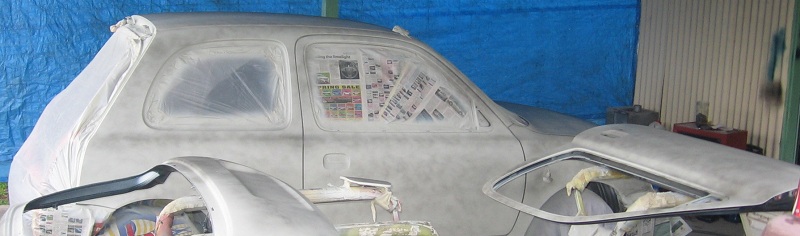

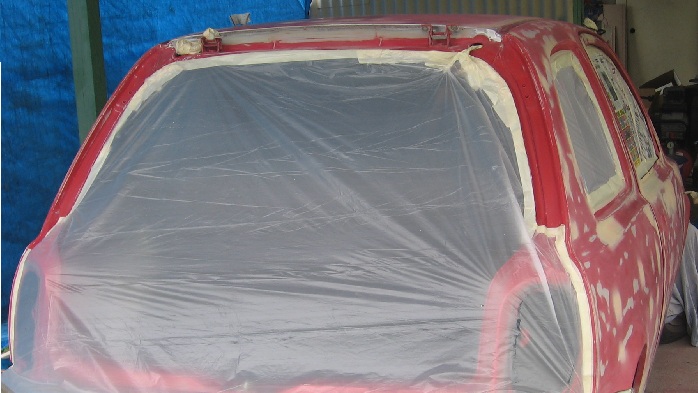

masking
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:46:36 PM |
|
masking
|
||
Image Attached:
|
||
|
ndxxx » CMF Member lismore Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:47:33 PM |
|
looking classy man, doing everything by yourself?
|
||
|
MSDVS » CMF Member Elanora Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:49:49 PM |
|
What colour yu going?
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:51:54 PM |
|

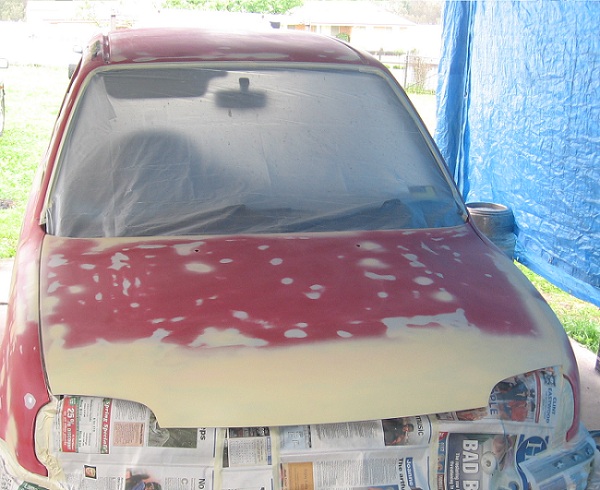

front
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:56:35 PM |
|
ndxxx WROTE: "looking classy man, doing everything by yourself?" doing all the gunwork but the panels are being done by my mate Eddie, a bit of a master and apprentice setup, good isnt he!!! |
||
|
ndxxx » CMF Member lismore Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:58:04 PM |
|
looks good man, im about to do the same project in my garage, how you going for a home made booth? are you just doing it in the yard or whats going on there?
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 10:58:33 PM |
|
MSDVS WROTE: "What colour yu going?" havent bought colour yet but planning on same red |
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 11:01:14 PM |
|
ndxxx WROTE: "looks good man, im about to do the same project in my garage, how you going for a home made booth? are you just doing it in the yard or whats going on there?" We're the original backyard boyz, but colour will be done ina booth at eddies work |
||
|
ndxxx » CMF Member lismore Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 11:02:55 PM |
|
F yeah dude! ill be keen to hear progess on this! are you doing a close door job?
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 11:06:02 PM |
|
front
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 11:07:59 PM |
|
front
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 04 Oct 2010 11:15:10 PM |
|
ndxxx WROTE: "F yeah dude! ill be keen to hear progess on this! are you doing a close door job?" will do inside doors, under bonnet but not engine bay |
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Tue 05 Oct 2010 01:02:41 AM |
|

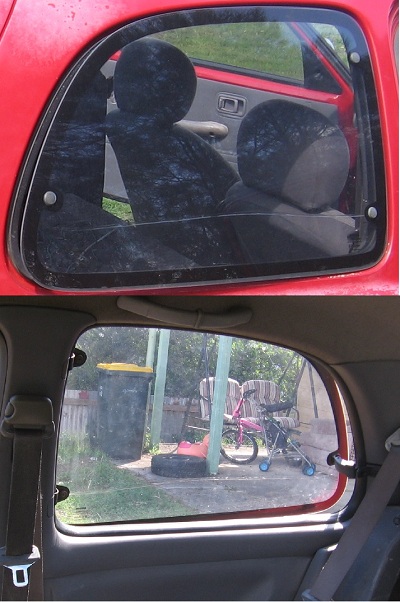

previous mod, popout r/windows and associated interior trims, holes and slots had to be cut into the LX shell for trims and window, will have to fix tinting at later date
|
||
Image Attached:
|
||
|
LonePhantom » CMF Member Canberra Australia Member since: Posts: |
Re: Rudys Shed Thread |
Tue 05 Oct 2010 08:54:51 AM |
|
Hmm yours looks the same as mine before you started. Badly sun damaged. Mine has a little rust though. You can do mine next if you want! Good practice for you. ;-)
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Tue 05 Oct 2010 12:06:09 PM |
|

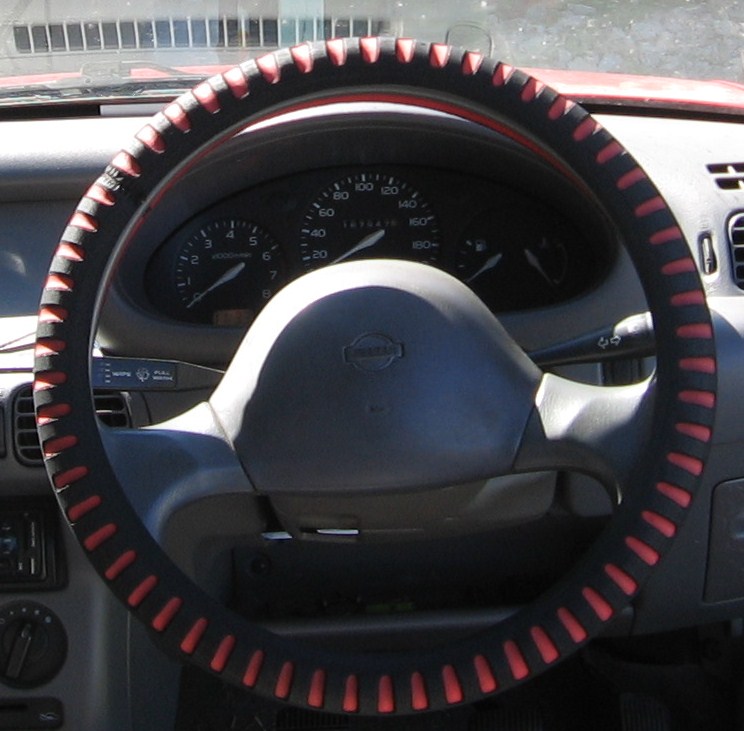

tacho dash(plug in), N13 baseplate and N14/15 pulsar r/h blinker(car rewired with pulsar plugs,fiddly job)
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Tue 05 Oct 2010 09:10:07 PM |
|

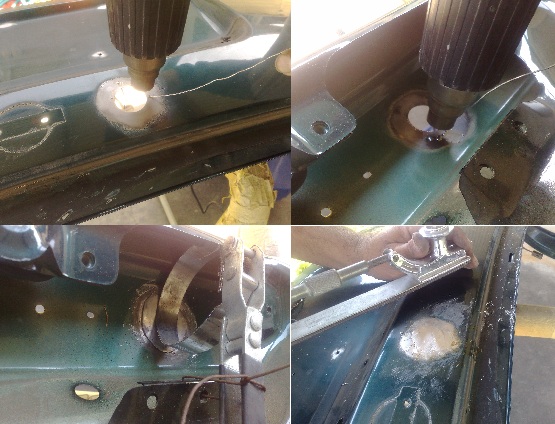

Removal of rear wiper hole involved cutting a piece of steel abit larger than hole. Cleaning around hole with wire wheel both sides, and same with patch. Then all surfaces were tinned using a hot air blower and solder. The patch was then held in place using a wired in oil filter remover. The hole was then filled in with a bigger bar of lead from Bunnings. Then filed back
Neat trick Eddie, works for doorlocks too |
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Tue 05 Oct 2010 10:14:08 PM |
|

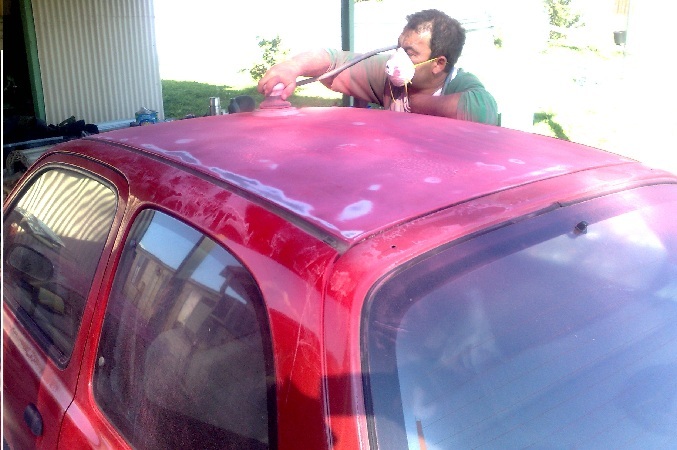

yours truely wielding an oscillating sander with 240grit on good surfaces but on this roof didnt muck around and ripped it down with 120grit
|
||
Image Attached:
|
||
|
BEN129 » CMF Member Brisbane Australia Member since: Posts: |
Re: Rudys Shed Thread |
Wed 06 Oct 2010 08:25:51 AM |
|
after prepping my last 2 cars for paint my heart goes out to you, most menotonus, time consuming, knuckle scraping finger blistering jobs on the plant (if u do it properly, which u seem to be)
I said it after the skyline, then said it again after the s13, that i would never paint another car... but sure i will attack the k11 eventually. Good news is... its about half the size of any other car :) goodluck come time to paint! |
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:05:38 PM |
|
Towed her to Medowie Smash saturday morn, spent the next 2 1/2 days getting her blocked down and painted, come up big.
Special thanks to Darko of Medowie Smash for making his booth and workshop available to us the pics will be out of order with the paintjb first and the prep pics tommorow |
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:06:55 PM |
|

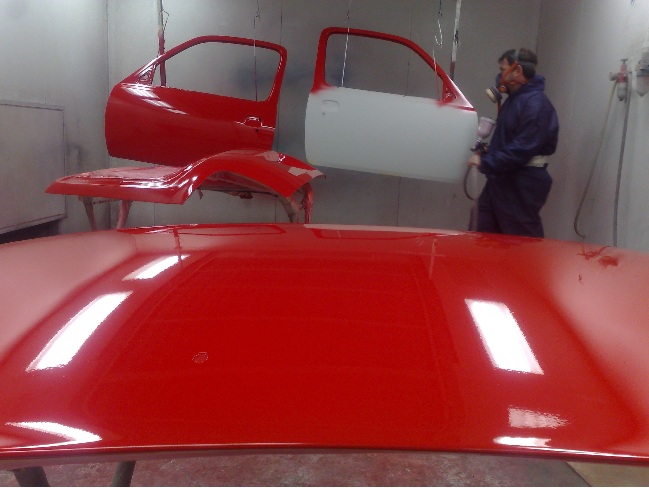

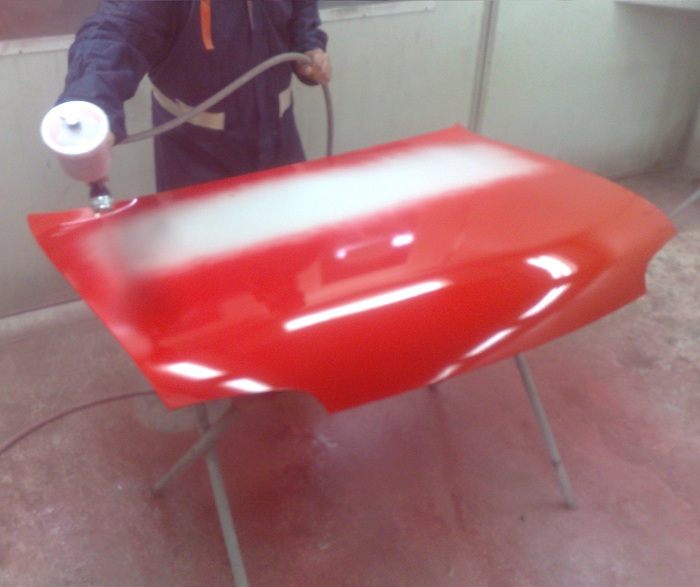

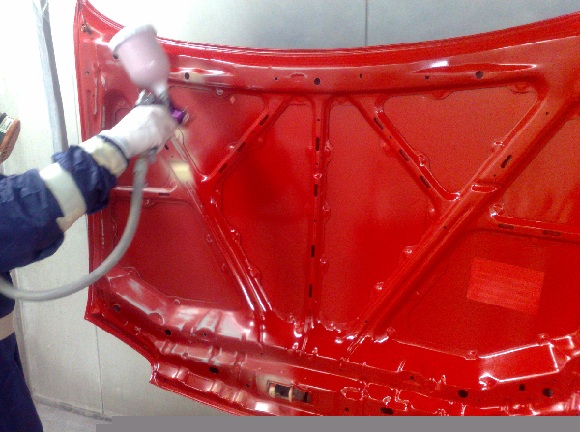

start with bonnet
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:07:52 PM |
|

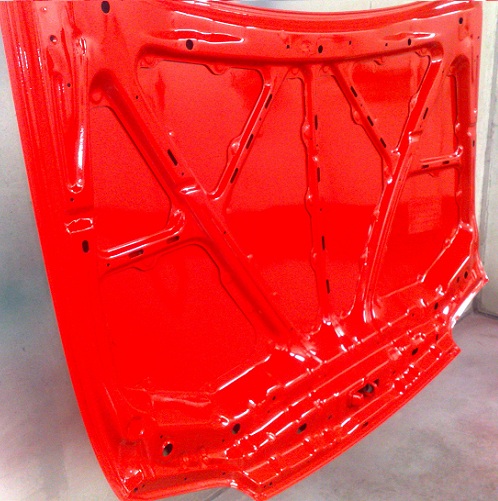

bonnet
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:10:12 PM |
|

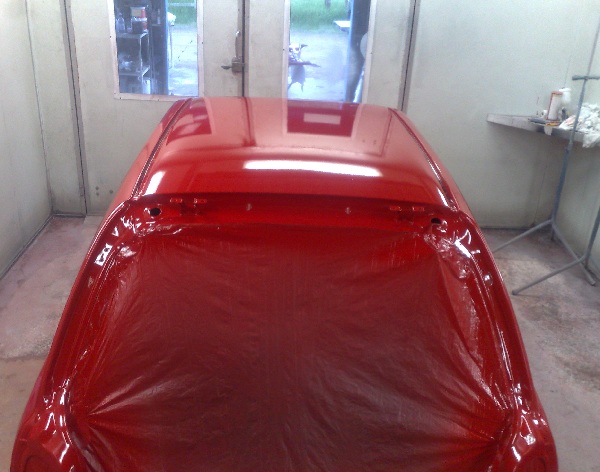

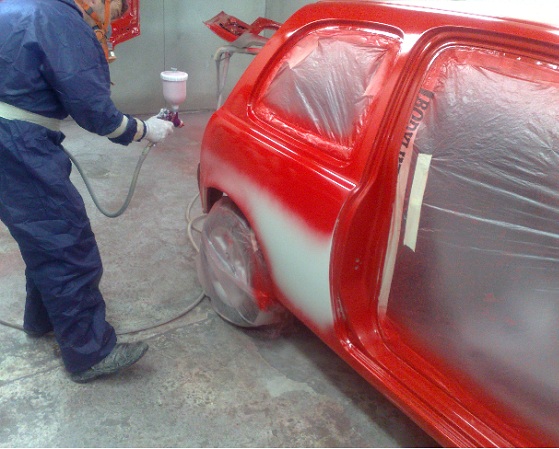

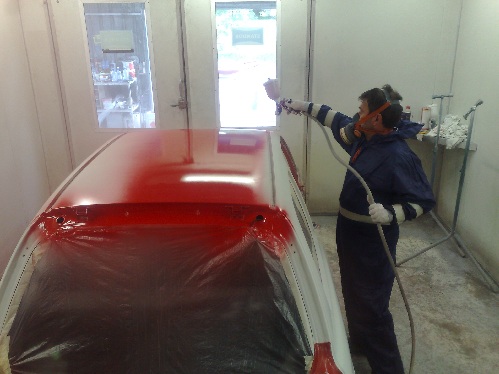

"layin on jam"
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:11:00 PM |
|

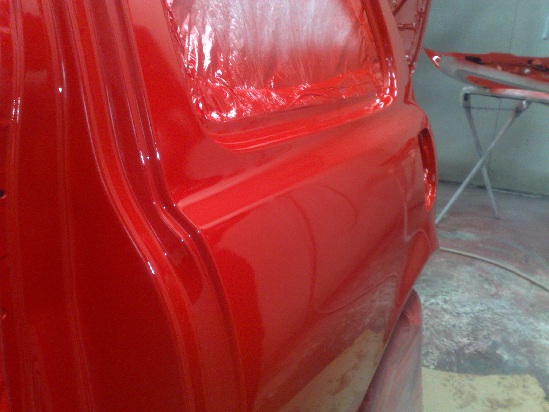

more
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:13:05 PM |
|
more
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:14:32 PM |
|
more
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:20:39 PM |
|
more
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:22:20 PM |
|

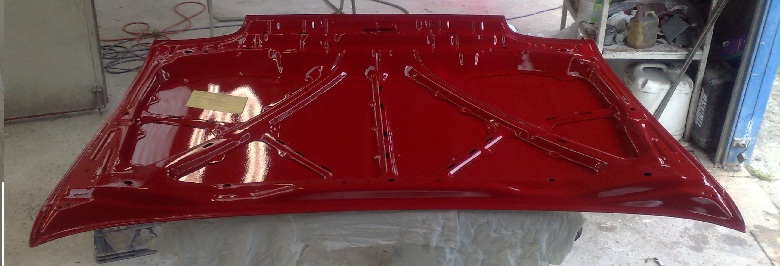

bonnet
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:25:42 PM |
|

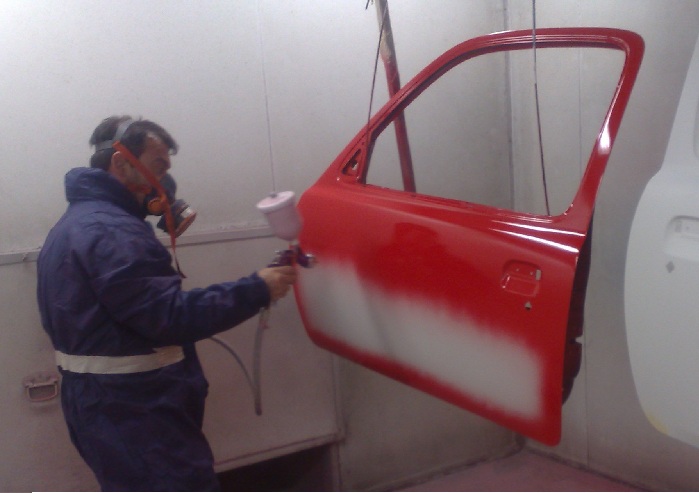

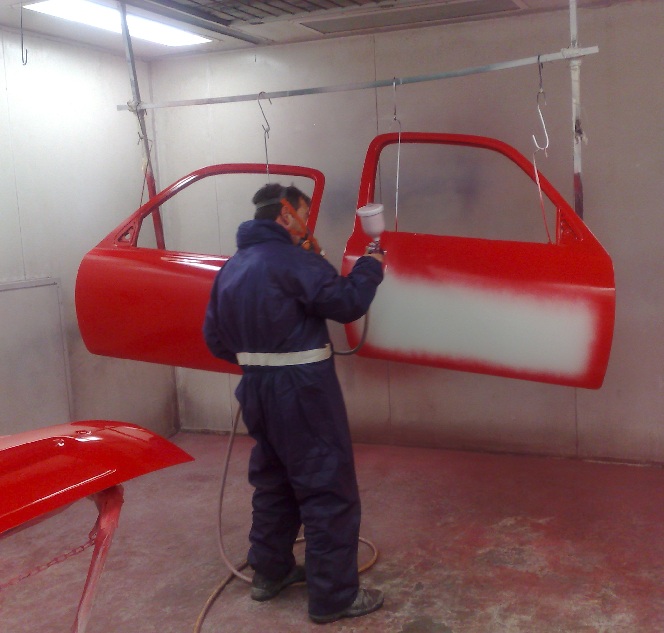

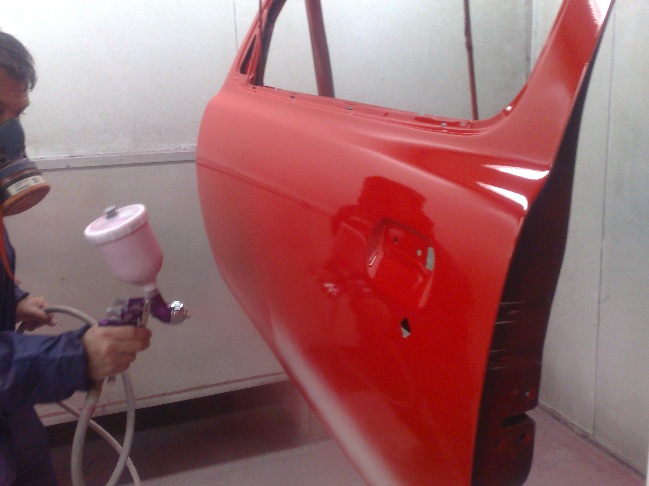

door
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:26:32 PM |
|
door
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:29:00 PM |
|
2nd door
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:30:12 PM |
|
2nd door
|
||
Image Attached:
|
||
|
Rudy » CMF Member Hunter Valley mob 0400767960 Australia Member since: Posts: |
Re: Rudys Shed Thread |
Mon 11 Oct 2010 08:33:48 PM |
|
AJ4 Red,
sanding back colour and buffing now will post more pics soon |
||
