Fitting wider rims

Hey guys,

Well, my new rims arrived recently, and now that I am back from work, I am going through the rigmorale of fitting them.

Took them to get tyres fitted today, also tracked down some hubcentric locating ring thingos and had a crack. I knew they would be too wide, so was more trying to work out how much elbow grease I have in front of me..... anyway, a few pics.







The rears aren't too bad. With some guard rolling and a little pulling of the guards, I am hoping that I won't need to do any extra bodywork/flaring.

The fronts are going to take more work. I picked up some camber bolts this arvo and will need to get the heat gun out with the guard roller to push the limits a bit.

Also, the rims aren't bolted up tight in the photos. I only had stock nuts, and couldn't get a socket/wheel brace over them, so they are just finger tight, and still quite loose. So that should drag a few extra mm out of it too.

Any tips on rolling the micra guards guys?

I have a guard roller already. Now that I also have some in-hex wheel nuts and front camber bolts, I will have them all fitted up tomorrow..... whether they stay on depends on how the guard rolling etc goes.

Anyone selling coilovers? :D

Oh, I forgot to say, the wheels are 15x8 +25.

i think you will just stretch the lower doorgap with an arch roller personally adz

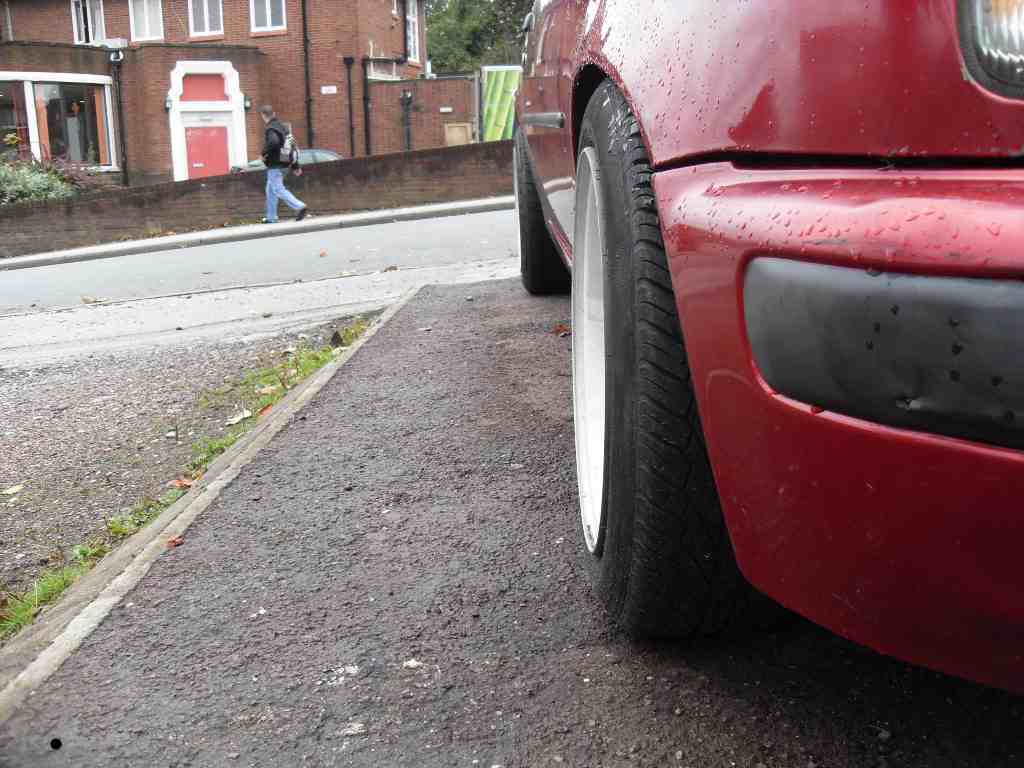

my red one was fouling on the offside only, even with a lot of camber ( probably more camber than your camberbolts will give) and i had to take the wing off and bash the front of the flitch downwards (so that the front of the wing sat lower and the arch "bellied" outwards for more clearance)

Yeah, if after a bit of work with the roller I am not having much luck, I will prob either end up with flared aftermarket front quarter panels, or pull the lip out and flare the stock guard.

All just a game of patience now lol.

i bet you would be fine with stretch tyres and 5deg camber eh

frank

lol, yeah not keen on that haha. I plan on having a second set of rims for hillclimbs/sprint days etc, so hacking up my rear axle for massive camber is not an option.

JDM yard.

why wouldnt you?

i run -5 F & -6.75 R all day and the amount of grip is amazing! espically with some decent tyres on it handles like a dream

what size tyres you running? 194/50 ku31's? or 195/45?

kumho make random tyres in 155/60 and 175/60 that will help fit them under, def go some camber as well..

if not run some other narrower rims for the road and these for the track.

i think the tyre size looks good like that.

camber an flare, will look great. are you going to lower it any, or will that mess wit your track setup?

Well after putting in the camber bolts, rolling the guards quite aggresively, I am pretty happy. Whilst the rims don't sit inside the guards, the top of the tyres sits inside and I can't see too much hassle from the plod. The car will only be getting driven 5 days a month or so.

It will be going about an inch lower once I get myself some coilovers. There is absolutely no scrubbage at this height, so I am hoping another inch with much stiffer springs won't lead to too much messing around with cutting/bashing/etc etc.

xsoarerx: they are 195/45s. I am happy with this tyre size, and not going to any narrower/taller in the sidewall to get any more stretch. I guess the biggest thing with the rear camber is the idea of hacking up my axle and then guessing how far to bend the hub back to get the camber. It seems very rudimentary and frought with fuckups.

Who did your rear camber mods? That is another issue... I have no grinder/welder, and I highly doubt it would be easy to walk into a shop and say "Hey can you put a slice in my axle, bash on an old wheel to bend my axle up and then reweld to give me precisely 3 deg negative camber whilst not affecting my toe settings please?" lol.

Needs lowering :D If I wasn't trying to sell the current suspension, I would just lop a couple of coils out of the springs.... coilovers will come soon enough. Probably install them while I have the front end apart for the turbo conversion.

guards look good. will look the tits when its slammed

i was making more of the point that camber add's grip rather than you needing it. how the rear's sit i wouldnt bother too much. they look like there in the guard and you can still bring that guard out heaps more. are you going to lower it some more or is that where your leaving it?

in all honesty i never thought you'd be able to fit these on a micra with so little effort. makes me think aobut the sakura copys and why know ones done that yet...BEN!looking in your direction :P

Yeah, I thought about getting the sakura's.... but figured equip 03 copies were bad enough, let alone cherry blossoms :P

I aim to lower it another inch or so once I get coilovers shortly. Car is off the road now for a month or 3, so will be pushing the guards a bit further while its up on stands.

I also understand the whole camber vs handling thing. Seriously, if I knew of a workshop that would do it for me, and that I could trust to get the job done right, I would probably get ~2-3deg of camber in the rear. Any suggestions?

in all honesty some very good 195/45's would prob do about the same as 2 to 3 deg in camberin terms of amount of grip

my mate that built the car did it him self, once you see how its done its very easy process, its just being able to weld and taking your time to get it right.

Yeah fair call. I guess it will depend a lot on how the fitment of the 8" rims is when the car is lowered further. Cheers for the pointers.

they were high on the list. but the dragways were a cheap start option till i find some real jap wheels. now that ive seen the fitment of them it makes me wish i had gone the sakura flowers, i thought they would poke alot more

adz14 you need that car lowered BAD....will look so awesome together. lol

Yeah I know haha. I won't be sacking it though.... just another 30mm or so.

About to order my coilovers... undecided whether to get Ksport from US or BCs from Justjap... hmmmm.

i have 225s on the rear.. and they dont seem to be a problem.. 8.5 inch rim ..

What is the offset of those 8.5s MSS15?

coilovers are the way :D

Have you driven the car with the new rims? do you get any inner guard scrub on full lock?

At that height, with only me in the car, I had no scrubbage whatsoever.

Car is off the road at the moment, and I put in the coilovers yesterday and dropped it another inch or so. I dare say now there will be scrubbage issues. I will know in a month or 2 how bad they are.

Ok.

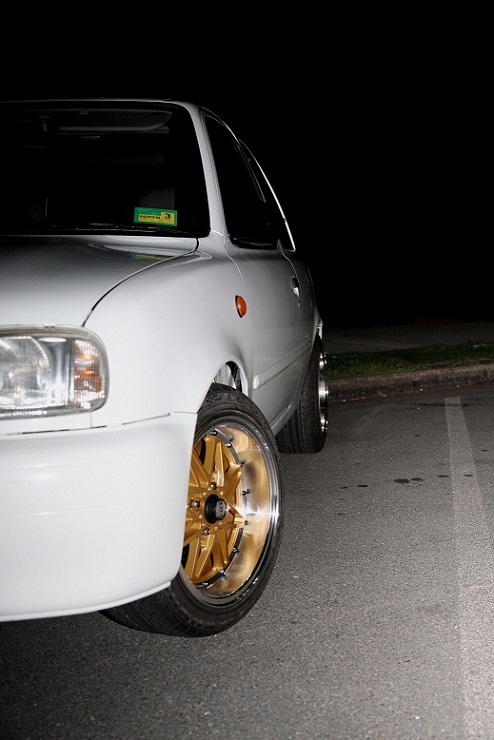

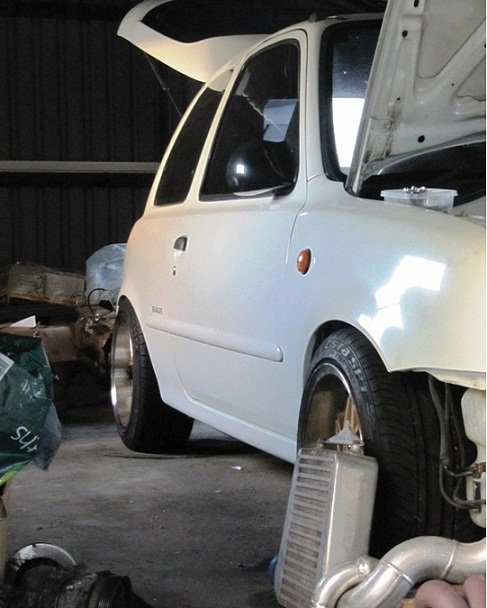

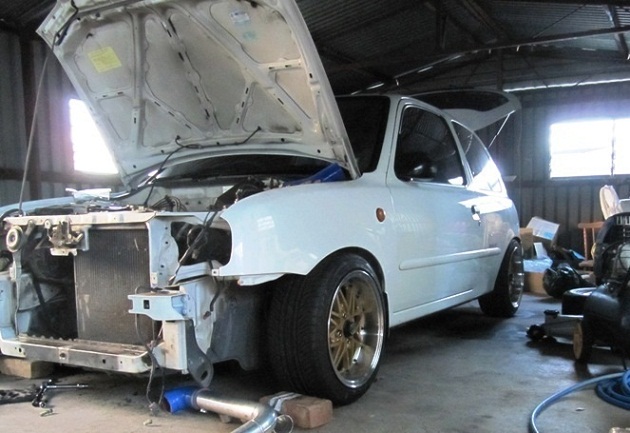

So now have the car lowered a fair bit more with the new coilovers. Car is still off the road for a bit longer yet.... but here are a couple of pics showing the height and fitment.

passenger side.

looks awesome!

^ why would you say that? thats terrible.

adz your micra is looking great, i like that 1st photo alot!

ride height looks much better, good job dude.

It was good to see you fit those wheels under with such little fuss, i have a set of 15x7 +0's on the way, and they will poke another 9mm on yours, so felt reassured it was possible

looking at that last pic, how is your inner clearance at the front?

you,ll have some poke on the front with those ben :o

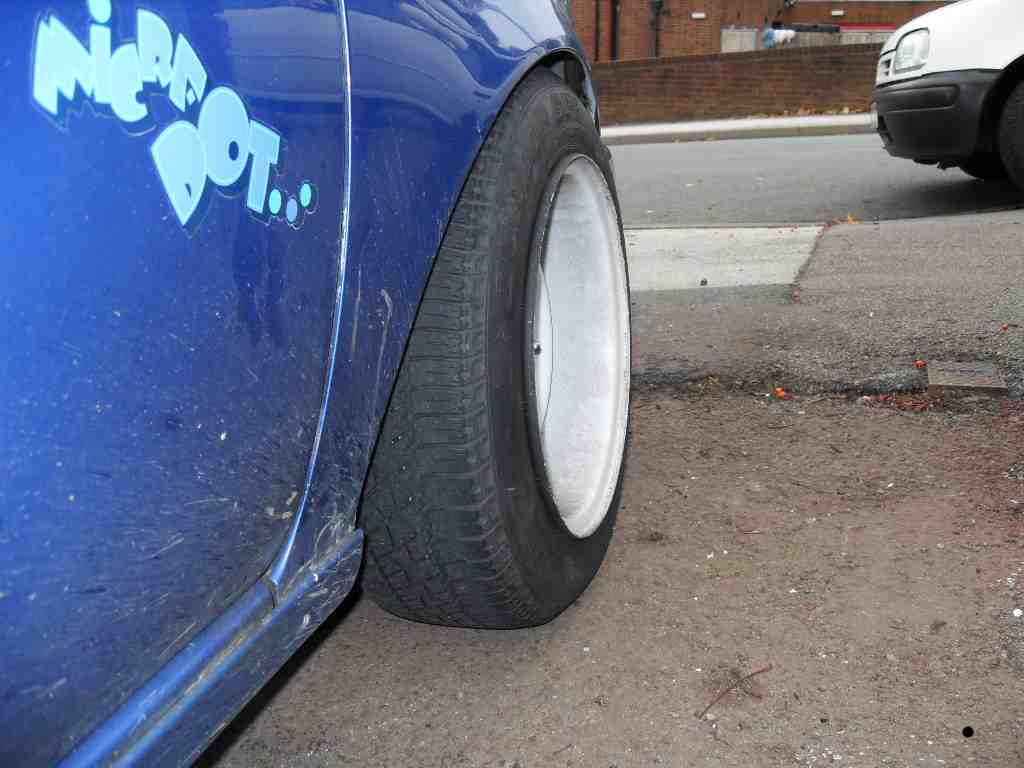

here,s 6.5 J et 0, and 155/70/13,s stretched on (with some camber and the wing bellied out too)

Before the car was lowered, it was fine, no issues. However... I won't know for another month or 3 if there are any issues now. The picture is pretty deceiving though.... there is more clearance than it looks.

jesus.. u can nearly see the inside tyre wall at the base of the guard haha.

i will make it work, cut and camber if i have to :)
