Saas Tacho

going for a quasi Super S tacho cluster look. i'm going to put a 2 inch water temp gauge on the right so you can still see the fuel gauge and then put an analog clock in a dash top 3-gauge pod.

gauge mocked up in cluster hood.

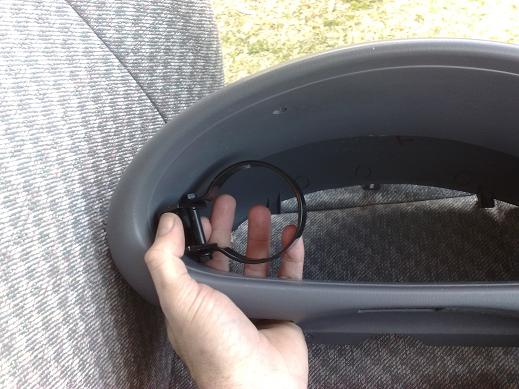

the mounting bracket, make sure its all even then mark holes

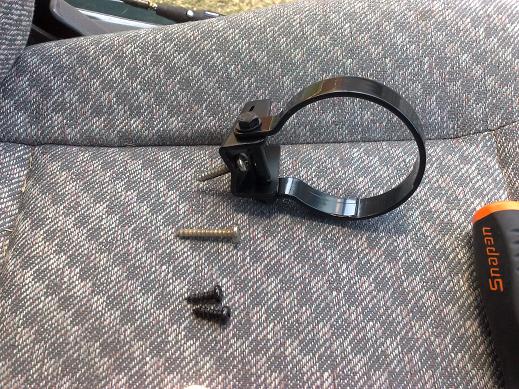

the screws that came with the tacho are too short for a firm mounting so i substituted some slightly longer ones. i had lying around.

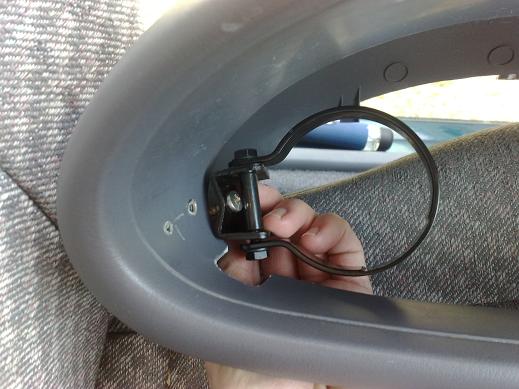

holes 'drilled' through with a small soldering iron tip then screw started while its still warm.. i'm too lazy to drill. used to 'drill' 20+mm holes with a soldering iron when i was installing satellite tracking systems :o) quick, quite clean but smelly.

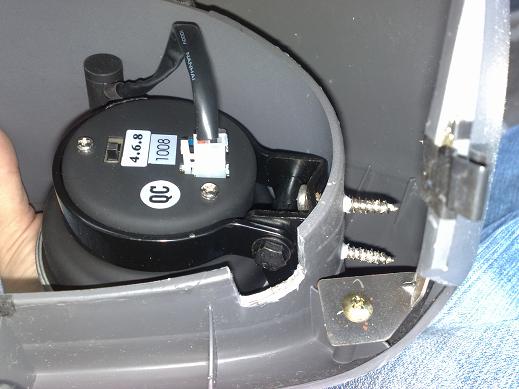

i had to mount the bracket then put the tacho and shift light in after. this meant i needed access to the bolt on the bracket, had to cut a hole in the shroud to get to the bolt head but it also gave me somewhere to route the wiring harness.

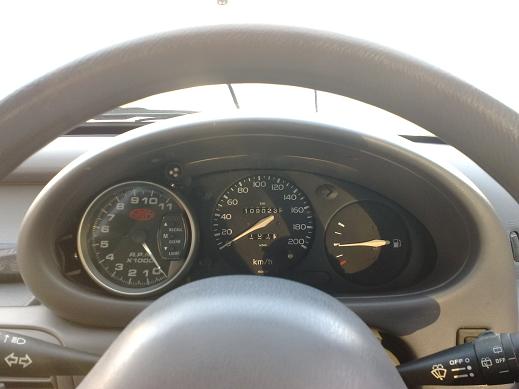

all back together now, no more water temp gauge it it hardly ever worked anyway. and the clock, everyone knows about them not lighting up. the UV LED i put behind the clock looked cool but didn't help you to see it at night.

the Saas tacho is LED backlit with an option to change colour.

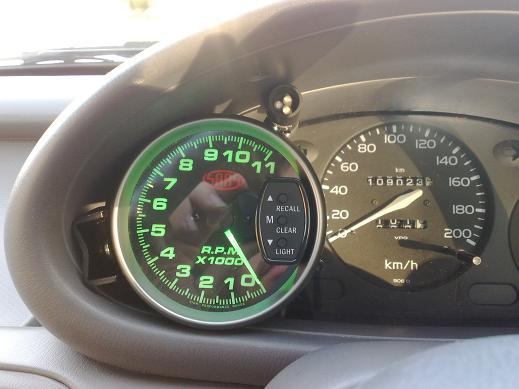

...Green...

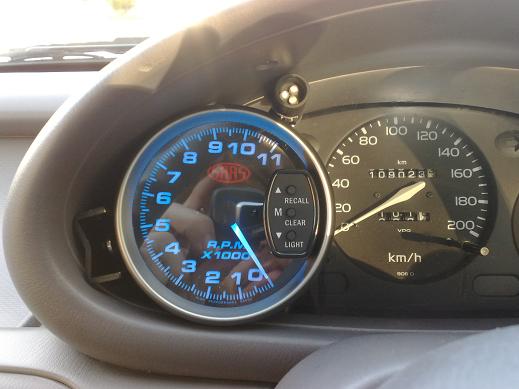

... Blue..

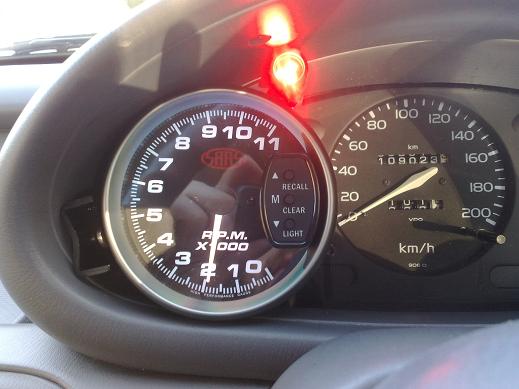

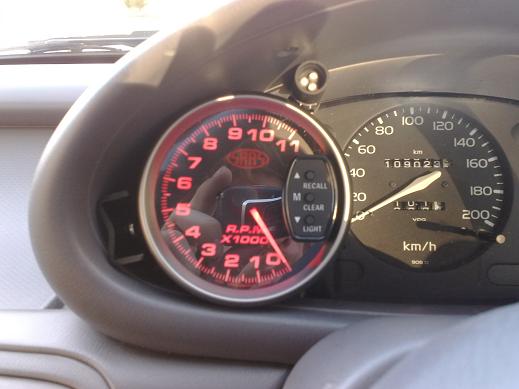

... Red...

Hi AB,

Looks good but dont let the shift light blind you....:-)

and White...
set the shift light to 2k rpm to test it out...

Cheers man. its not too bright, just the camera was directly in line with the LED's. i'm going to stuff a piece of frosted polycarb in front of the LED's to dull it a bit.

Thanks Low.. i was looking for a 75mm one to match the size of the micra gauges but just couldn't be stuffed looking anymore so i got this one (95mm). i figured its gonna cover the temp gauge so as long as it fitted i wasn't too worried.

its removable but i thought i'd give it a go till i'm used to the sound of the micra engine a few rpm's before redline. tho i can definately feel it stop pulling at 4k-4.5k rpm's so i don't really need a shift light... ads wank factor tho ;oP

Keep the shift light......

think i will keep it for now, i'm too lazy to pull it off anyway. need to get some more gauges now(plenty more... just because i can) but suspension components need to come first i think.

Nice!!! this one cost me $100. i'm waiting on a call from a mate who's in contact with one of the few distributers here of gauges, he says he can probably get me gauges at wholesale price. tacho, vacuum, ammeter, volt meter is ok 2nd hand but i'd prefer to get the rest new so i'm guaranteed i get the correct senders.

Check the speco brand Tacho its the one we got and alot smaller then that by the looks of it.

get some cams in it, mine does,nt wake up till 4k http://www.youtube.com/watch?v=bsBiDbl7DXU
and i grafted my tacho into the other side to you lol

frank

NOt a bad run there frank. What power you putting down now.

http://www.speco.com.au/tachos.html


Have a look there for their range.

about 100hp i think mate, lpg and the little 160mm clutch limit any more than that

frank

looks good

Its pretty quick mate. I cant wait, the tuner rang me yesterday and told me he has the Autronic wired in and the Car starts. He just had to wire the supercharger to the auxillary and then sort the air temp and water temp sensors out and were on the road with a supercharged Micra. Its going to be sick.


Sorry for the Thread Hijack. On topic though i think i just figured out where i will mount the Tacho now.

yep with those you micra will rev to 9000rpm mate.. so shithouse it will die during summer..

because its inaccurate(reads wrong?!?), cheap ?!? If you are going through all the trouble redoing all the custom interior work and 'supposedly' another CG13de for your BIG turbo application. you are going to spend $17-$30 on gauge from ebay cheap shit 'type R' brand AND ITS SECOND-HAND. Dude if that's what your happy with....by all means go for it........

Saas are pretty decent for a budget cheap tacho, the electrics are a close copy of autometer. price range from 25-70 at cost and no more that $110 at retail. you can purchase them from any autobarn or just pm me.

mmhm......but do post up when you are pumping out more power that cisco's motor...

make sure that the retirement village/nursing home u may wind up in has an internet connection mycra, because u'll be waiting for a while

hahaaaahahhahaaaaaa !!! good one kovertk11. you can probably get a CG1300KW electric motor by then.

good luck

repco sells the speco ones.

Nice video Frank, what did the cams cost you if you don't mind me asking? i probably will cam it in the future.. build a motor on a stand then drop it in, but i'll be looking at street driving it so cams kickin in at 4k just limits the fun i can have.

Sik i looked at speco, got an ammeter by them installed, but only saw the 2" ones and i didn't want to order anything without being able to physically look at the gauge to see if it'd fit. if i get a donor car/cluster and a haynes manual for the wiring diagrams i'll make my own gauge cluster using the correct size gauges and wire than in place of the original cluster + external gauges so it all looks stock.

Mycra.. have you had much feedback on the Drift stuff, i've heard mixed reviews, some say its mint, others say its crap, its really accurate, its inaccurate, needles stick, all over the place... or is it just luck of the draw? its cheap enough and decent looking i'm thinking of getting a few of their gauges... stuff i don't really need like an oil temp gauge for the gearbox... i like to see what my car's doing. i went from a corolla that had a speedo, fuel, temp and clock to a 260Z with clock, fuel, batt, oil press, water temp, tacho and speedo... now i'm a gauge whore ;oP

the cams were reprofiled by autosprint for £80 each AB http://www.autosprint.co.uk/
they,re a 260 deg/10mm lift profile, and he takes 2.5mm off so that you can run an extra shim under the bucket (to make up the difference in clearance)
they have a very aggressive opening/closing ramp, which makes them ideal for a daily (because you dont lose any bottom-end/grunt) but that makes them prone to valvebounce, and they will spit a shim out at 7300+ rpm (my milder piper cams saw nearly 9000 rpm in my 1.0 engine no probs)

frank

I have a drift digital oil pressure gauge here you can have for next to nothing. They are good gauges and i never had a problem with it. But not sure what they cost. I just brought a full set of Defi Gauges for near on 1200

i know they are pricey but the thing i looked at is A. Its a set including the advanced control unit, oil pressure, boost, water temp and oil temp for 1200 delivered. B. THey have play back and also the built in alarm function for when oil pressure drops and boost spikes etc. This is priceless as the missus is the daily driver of the little micra and with the supercharged motor now in i dont want things to go unnoticed. That and she can drive the balls off the car but when it comes to looking at gauges she lacks that. So the alarm will be set low and she has to notice that.

All in all its something that will save thousands when something goes wrong so its priceless in my opinion.

pretty much yep. But if it were a stock motor i would not care. Though cos its forged and had the flowed head and blower etc. I dont want to have to go through a 3k just in parts to rebuild it cos it got hot etc.

would like to have one.. but don't know how to install...!! anyway, how much can get it to install in shop..? thx

don't u have a Super S jeff? which means you already have a factory tacho

Jeff, you already have one:

oh... but doesn't look as good...!! thx

Well if you want i will swap you my lx one with no tacho and 50 bucks cash along with a speco tacho and you give me your one. Then you can mount the tacho on my cluster as above and everyone is happy.

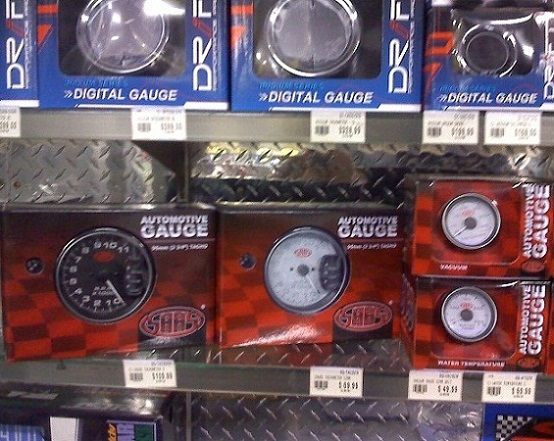

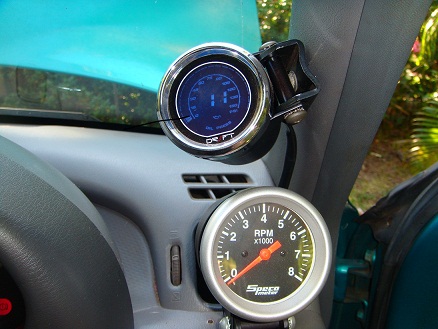

Pics of Speco Tacho

Their position is changing with the new Defi ones going in. But dont want a tacho i really want the super S cluster.
