Technical Forums» Aesthetics» Micratech garage (picture updates)
|
micratech » CMF Member Geithus Norway Member since:  Posts:  |
Micratech garage (picture updates) |
Fri 17 Jul 2009 09:16:38 PM |
|
Hi everyone!

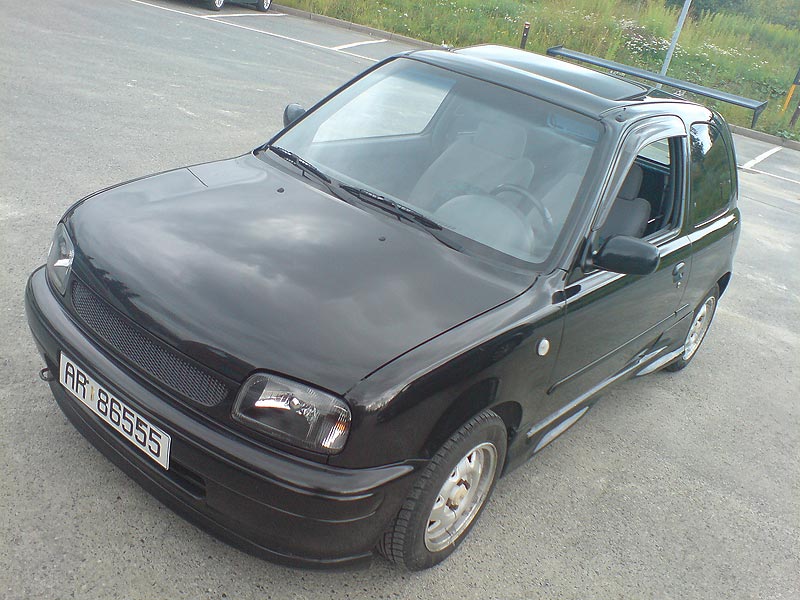

It has been a while since i last posted here. Things have stood still in the garage for a while, but things are slowly starting to pick up again. Here is a new picture of "the black" after it`s update. New mods are: - Alu grillmesh changed to black grillmesh. - Alu mesh in rear diffusor removed. - Crystal style (black) headlights added. - All silver vinylstickers removed. - Changed from 16" OZ Hydra to 13"x6" ATS Cup alloys (yet to be restaured and painted). - European version Super S seats installed to match original interior color. |
||
Image Attached:
|
||
|
|
||
|
mik » CMF Member Stuttgart Germany Member since: Posts: |
Re: Micratech garage (picture updates) |
Sat 18 Jul 2009 02:26:34 AM |
|
yay, its been a while micratech :) i remeber the car, back then it was green right? but didn't you have a wald kit installed?
cheers |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Sat 18 Jul 2009 06:30:44 AM |
|
Hey Mik, long time yeah! :)
The green Super S is still in my garage, but has yet to get back on the road after a looong brake. This is the black Micra S that is pictured.. The green Micra with the Wald kit installed was the Micra of a friend of mine in the Micra community here on the site called bizardo. He changed it for a grey K12 later on after a crash with the green Micra. I will post a few updated pictures of the green Super S later on. And maybe a few of the red K11 body i have in the garage to once progress is made. I have had to prioritize other personal business than spending time in the garage for a long while now im afraid, but I am slowly getting things back on track.. Cheers back at ya mate |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Mon 07 Sep 2009 07:40:00 AM |
|

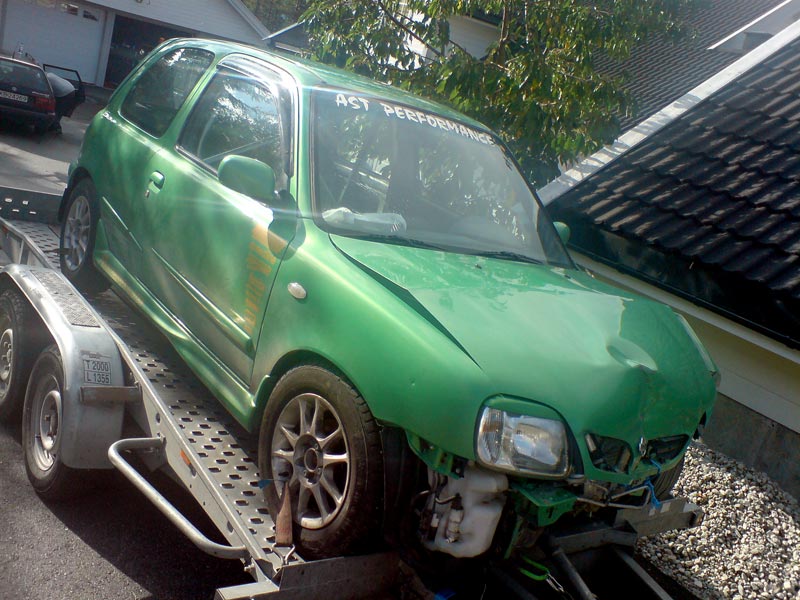

Well..number 4 Micra is now in the garage!
Wanted to get my hands on this turbokonverted Micra SRI for years. The car, intercooler and radiator is badly damaged, but engine and gearbox, turbo, intercooler piping, Turbosmart blowoff valve, sideskirts, rollcage, tower bars, exhaust, 5ft injector, SRI hatch wing, 4point harnesses, Sparco stearingwheel etc etc is some of the parts coming off the car and going on to different project cars in the garage or being added to the rest of the spare parts in the garage for safe keeping. |
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Tue 08 Sep 2009 06:36:52 AM |
|
Gathering of all the Micra`s..lol..what a sight! :D
|
||
Image Attached:
|
||
|
mik » CMF Member Stuttgart Germany Member since: Posts: |
Re: Micratech garage (picture updates) |
Tue 08 Sep 2009 09:50:44 PM |
|
HAHA this is just awesome :)
love it <3 |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Wed 09 Sep 2009 10:18:41 PM |
|
Well, im swaping the turboed CG13DE engine from the Apple Green Micra into the enginebay of the Black Micra. Bits and pieces from the Apple Green Micra are being pulled out of the engine bay. This setup has worked for years apparently. I have never untill now seen how it was built up, and it has puzzeled me for years..

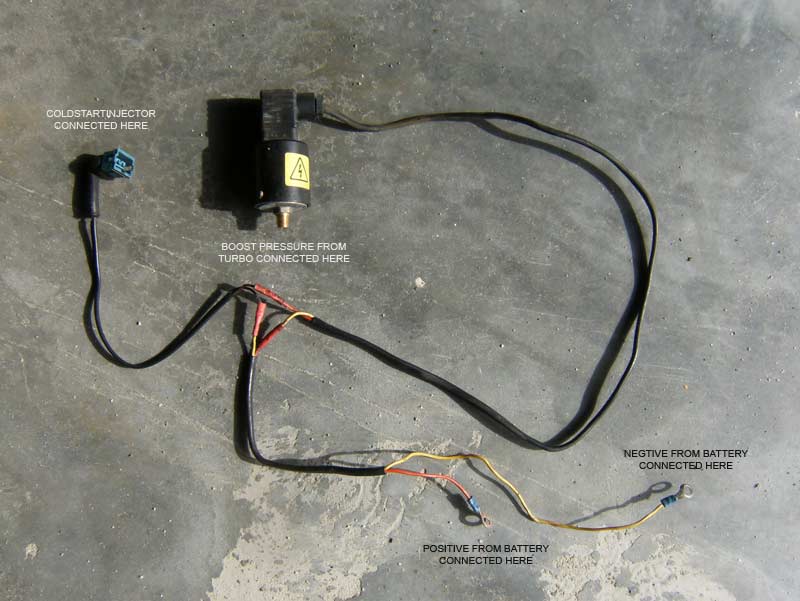

The turbo is fitted to a custom flange made to fit the original manifold where the fist katalysator used to be, nothing special. When it comes to the fueling side. There is used a pressureswitch that controls a coldstartinjector fitted right above the trottlebody in the intercooler piping. Thaught this would damage airflowmeter? Here is a picture of the aditional fueling system.. |
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Wed 09 Sep 2009 10:26:30 PM |
|

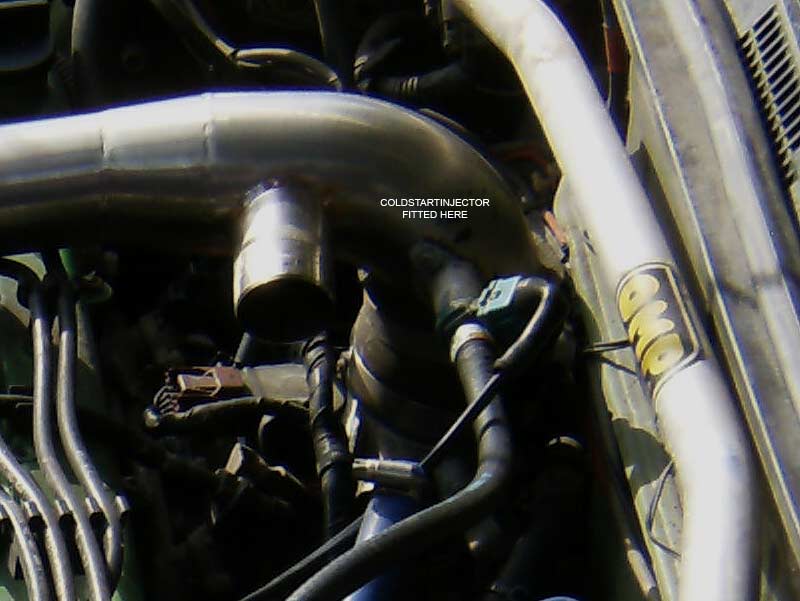

Here you can se where the coldstartinjector is fitted..
|
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Wed 09 Sep 2009 10:33:40 PM |
|

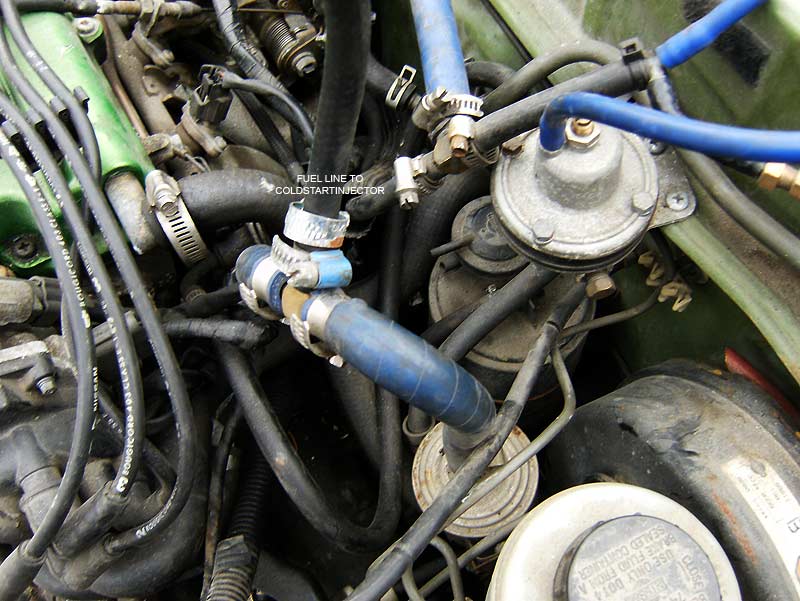

Nothing fancy, fuel pressure regulator and connections, Tpiece from the fuel line to lead fuel to the coldstartinjector..
|
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Wed 09 Sep 2009 10:35:42 PM |
|
("keep it simple stupid", "if it works dont change it") Any thaughts??
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 12:19:58 AM |
|
micratech WROTE: Any thaughts?? " its a very basic 5th injector is,nt it micratech ? (not pulsed, just open over a certain boost pressure) frank |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 05:16:18 AM |
|
Yeah Frank, I would say so..VERY basic..lol ;)
Just shows how simple a turboconversion of the CG10DE and CG13DE can be done. I will post a pic of the turbo adapterplate for the original manifold later on tonight! |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 11:03:49 AM |
|

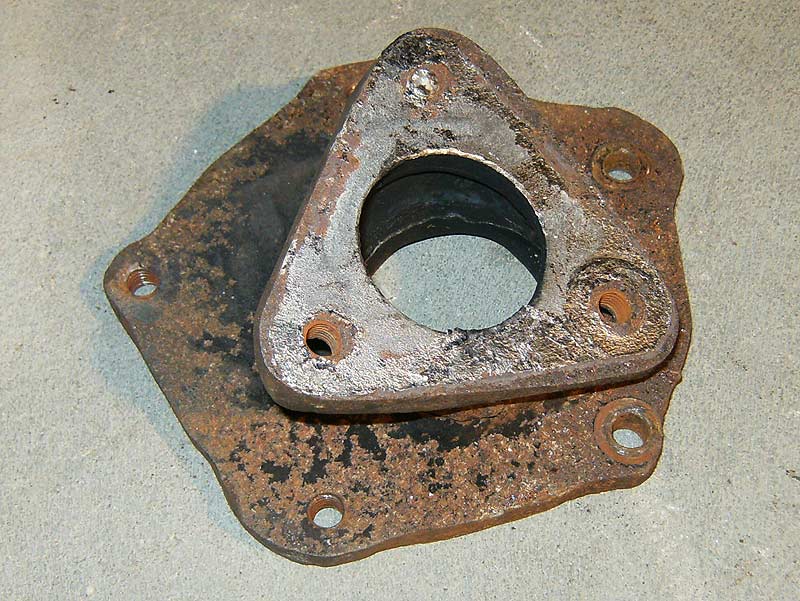

As promiced, the adapterplate to mount the turbo to the factory manifold..
|
||
Image Attached:
|
||
|
620racer » CMF Member Adelaide Australia Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 01:00:50 PM |
|
I assume there is no room for an airconditioning compressor in that installation, unless it is a tiny wee turbo ;-)
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 01:56:42 PM |
|
You are right about that 620racer. The engine bay of the Micra that had the turboconverted engine did have the ac generator still fitted though. But no room for the ac radiator I`m afraid..
|
||
|
mik » CMF Member Stuttgart Germany Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 05:49:30 PM |
|
What type of Turbo was fitted? Looks like a GT20? or something like that. How much did this setup produce?
And who needs ac anyway? :D |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Thu 10 Sep 2009 06:16:46 PM |
|
It is a Mitsubishi TFO35-1 a version of this turbo is normaly found in the 1999-2006 Mitsubishi Pajero with the 4M40 turbodiesel engine. I don`t know about the powerfigures though, but it was a quick little pocket rocket. I have only seen the dynosheet from the time when the boost was adjusted waaay down for tax reasons after the turboconversion. Yeah man, AC is for nancys! XD
EDIT/ Sorry about the tip of my DC Shoes slipper showing.. |
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Sat 12 Sep 2009 07:38:27 PM |
|

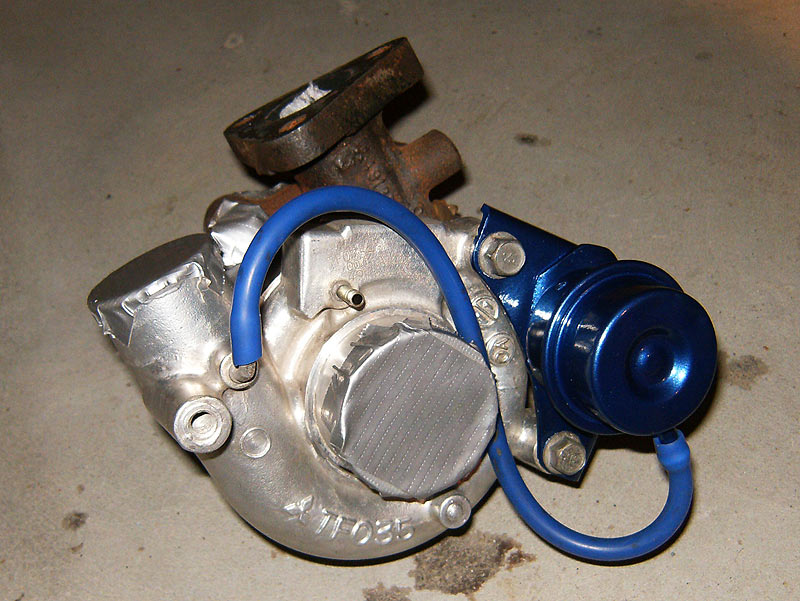

Here is i picture of what the turbocharger looks like now after a bit of cleaning and fresh paint to the wastegateactuator..
|
||
Image Attached:
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Mon 14 Sep 2009 05:45:45 AM |
|

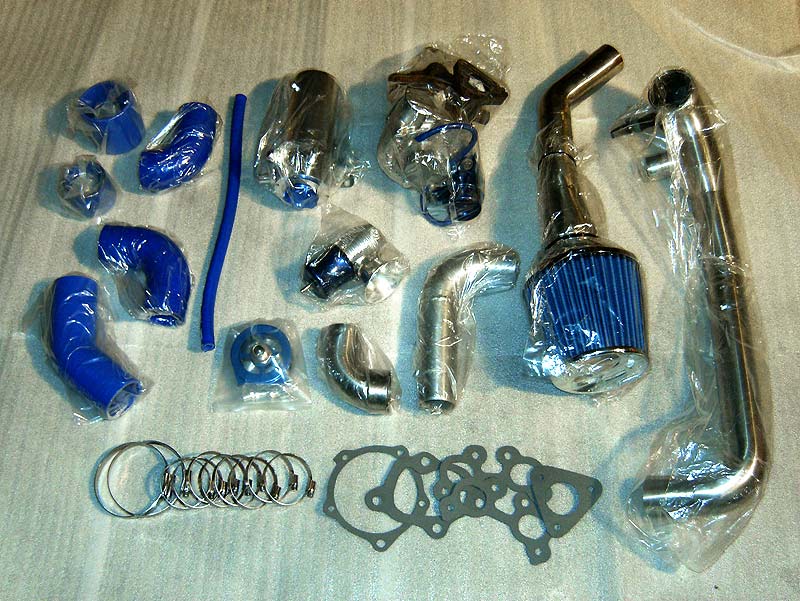

Well, here are all the major pieces. Slowly getting there, and enjoying it along the way! ;)
|
||
Image Attached:
|
||
|
fusca » CMF Member Leiria Portugal Member since: Posts: |
Re: Micratech garage (picture updates) |
Tue 15 Sep 2009 08:00:11 AM |
|
Very good project!
|
||
|
gibson_racing » CMF Member hervey bay Australia Member since: Posts: |
Re: Micratech garage (picture updates) |
Sat 10 Oct 2009 10:35:52 PM |
|
hey there your wing in the first picture wear abouts would i get 1 from or get a wing fora micra from cheers
|
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: Micratech garage (picture updates) |
Wed 16 Dec 2009 11:19:55 PM |
|
E-Tech is probably your best bet. But many other brands do them aswell.
|
||
