hey guys
the other thread was getting a bit chocka block and taking forever to load sooooo heres part 2 of the build. ive done a bit since i last updated. - i made up the brackets to mount the aircon in, simple bit of metal cut to shape and tapped so that the a/c unit screws into the bracket. the bracket was then fiberglassed in. - amde up some plates to block the 2 centre a/c vents cuz there not being used. - trimmed up the clster visor, still to mount it. - put the storage compartment in under the steering column. - brought some lcd screens and put them in - and started the body filling and snading stage. enjoy                     |
||
|
|
||
|
cisco » CMF Member Canberra Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 10 Jul 2009 12:05:45 PM |
|
OMG you're kidding, that's amazing. Awesome effort.
Can't wait for finished pics. |
||
|
bigstick » CMF Member Brisbane Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 10 Jul 2009 05:54:14 PM |
|
marsh...pm'd
|
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 10 Jul 2009 08:50:56 PM |
|
kkkkk
|
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sun 26 Jul 2009 08:46:44 PM |
|
hey there guys
well long time no update, ive been up on the gold coast but got back yesterday and got stuck into it today...sorta, my angle grinder broke so i was limited in what i could do. i got it in and gave it a test, the screen was off axis by 3mm so i will have to fix that but no grinder, im still struggling withthe cluster visor its being annoying! either than than it all went well all fits. went to wire up the screen but i run into trouble :( on the screen cable there is the yellow which is the positive, black which is ground, then red whcih is the acc, where does this wire up to? cheers!      |
||
|
mik » CMF Member Stuttgart Germany Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Mon 27 Jul 2009 07:47:20 AM |
|
how heavy is all that fibre matting? looks a bit heavier than the stock one?
|
||
|
33driver » CMF Member Brisbane Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Mon 27 Jul 2009 03:23:49 PM |
|
hey mate,
Cable wiring: Yellow - Constant 12V for memory retention Black - Ground Red - Switched 12V, so thats what turns the screen on and off (wire to ignition) |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Thu 30 Jul 2009 06:09:48 PM |
|
got the screen bracket cut out repositioned on the right angle and then reglassed it back in, put one layer on grinded down where the material met the previous glassed spot to make it smooth and flat and put some more glass on that should be my last bit of fiberglassing. other than that more filler, the yellow filler is plastic filler.
only 6 weeks til its due :shok: enjoy!!     |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 31 Jul 2009 05:16:43 PM |
|
hey guys
more sanding and shaping today.... also got the screen trimmed and shaped up ready for filler. cheers    |
||
|
smidge » CMF Member Sydney Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 31 Jul 2009 11:20:55 PM |
|
great work mate, 33driver is right with the wiring, if you need any advice on that part just yell (or make a thread... internet equivalent!)
|
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sat 01 Aug 2009 11:12:54 AM |
|

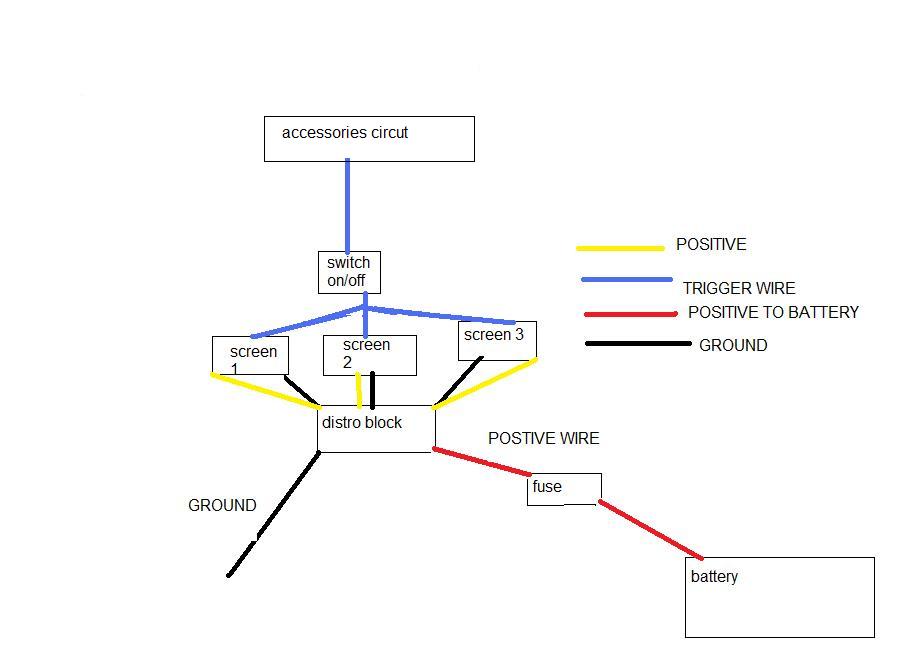

yeah i got it all figured out im preety sure this is what im doing with the wiring
|
||
Image Attached:
|
||
|
NeX » CMF Member Gothenburg Sweden Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sat 01 Aug 2009 08:26:15 PM |
|
might be worth getting a fused distribution block, they are easy enough to come by
|
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sat 01 Aug 2009 10:37:03 PM |
|
i was thinking that but im making my own custom distro block cuz im going to have one block to run the amps, downlights, swithces, gauges, and screens and im putting it on display somewhere in the car
|
||
|
NeX » CMF Member Gothenburg Sweden Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sat 01 Aug 2009 11:35:27 PM |
|
Marshal WROTE: "i was thinking that but im making my own custom distro block cuz im going to have one block to run the amps, downlights, swithces, gauges, and screens and im putting it on display somewhere in the car" sounds awesome, i have seen some people make their own blocks by machining solid aluminium it looks amazing. but i was also looking at some blocks by mutant and they come with a blue digital volt display that also looks awesome. i really cant wait to see the finished product, are you going to spray the dash or flock it? if you are thinking of spraying it, be warned that gloss finish, (which i had on my dash) reflects horribly off the windscreen, it gets very anoying thats why all dashes are a matt or textured. |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Mon 03 Aug 2009 04:20:30 PM |
|
hey guys
got a bit done today, sanding wise! got filler on the screen today so now the whole dash is in filler :) oooo and i broke a sander, first it started slowing down and then smoking and then it was rooted lol enjoy guys  my sanding station     |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Tue 04 Aug 2009 06:21:45 PM |
|
today just bogged up the lines where the glove box meets the dash to get it nice :)
  |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Wed 05 Aug 2009 08:01:11 PM |
|
the pictures are all seeming the same atm :(
but here more filler and sanding work, got the line where the glove box and dash meet nice and smooth :) enjoy   |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Thu 06 Aug 2009 03:02:05 PM |
|
got the glove box sanded up to some nice lines, still a few little spots to go but mostly right, also got the gauges and screen fitted in
enjoy      |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 07 Aug 2009 04:25:38 AM |
|
Lovin this thread and the effort you put into that dash Marshal, thumbs up!! Makes me wonder what the rest of the interior will look like once you get to it.. ;)
|
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 07 Aug 2009 10:03:11 PM |
|
thanks for that micratech!, got big plans for the rest of the car!
got the dash in for a test fit today, and after trying to make the cluster work i gave up and decided to make a new one, properlly after more reasearch. made a rough shape out of cardboard and sprayed expanda foam in. all up its looking nice im really loving it! note the glove box isnt shutting properly cuz the latch broke enjoy!!!       |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Mon 10 Aug 2009 05:23:58 PM |
|
well yesterdays update cuz i lost my camera and now found it :)
i got the cluster glassed up and figured how to mount it, im going to glass the external shell to the dash and have an iside part that is removable. got the inside of the glove box in primer and made up some blocks that block the vents off and filled them up with filler :) enjoy, todays update later tonight!        |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Mon 10 Aug 2009 09:11:30 PM |
|
well todays work, trimmed up the cluster visor and final sanded the glove box and gave it a shot of spray putty :)
enjoy    |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Fri 14 Aug 2009 10:37:53 PM |
|
got the visor secured on today and some filler on it. now to make the inside cover and its done :)
enjoy!    |
||
|
Marshal » CMF Member albury Australia Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sat 15 Aug 2009 06:37:06 PM |
|
hey guys a bit got done today!
i got the visor sanded back and slim with the dash now it looks sweet!!! sprayed a coat of spray putty over the dash to, it looks preety good nothing big that i see i will have to fix up before the trimmers enjoy!        |
||
|
micratech » CMF Member Geithus Norway Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sat 15 Aug 2009 10:09:18 PM |
|
So cool! :D
Looking forward to see the dash after retrim.. ;) |
||
|
NeX » CMF Member Gothenburg Sweden Member since: Posts: |
Re: 09 MAJOR DESIGN PROJECT-CUSTOM F/G DASH #2 |
Sun 16 Aug 2009 03:20:34 PM |
|
just keeps getting better :D
|
||
