Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:04:40 PM |
|
hi guys!

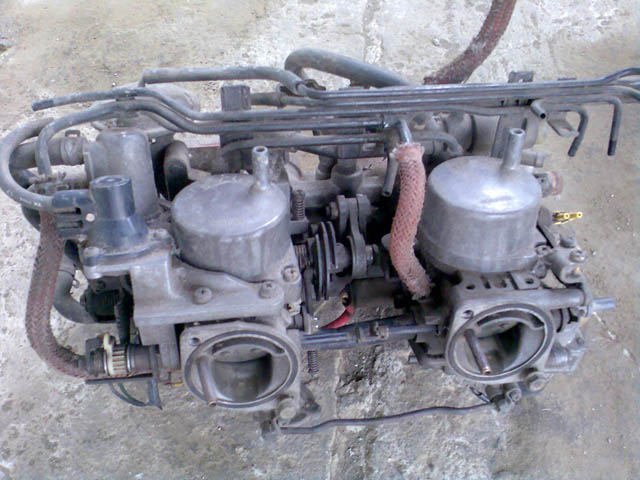

i finally decided to turn my cg10 efi to carby. took out a dual carb from a honda and gonna implant it to my cute cg10. anyways ill be updating you guys with pics of the progress. |
||
Image Attached:
|
||
|
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:05:48 PM |
|
oops! typo on the thread title.. was supposed to be Akinari's EFI to Carb Project
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:08:44 PM |
|

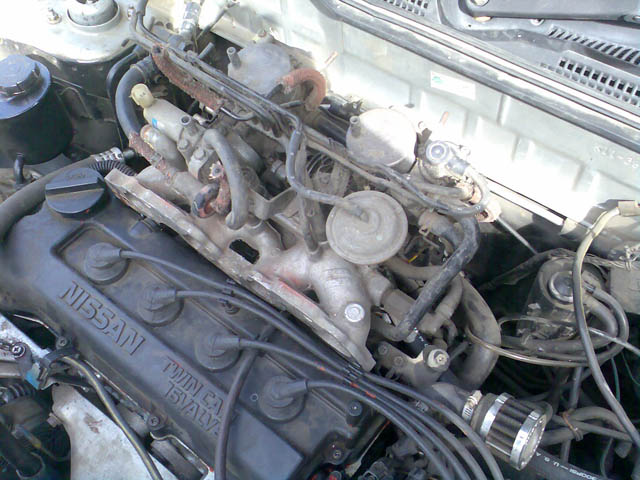

hmmmmm (wondering if it fits or not)
|
||
Image Attached:
|
||
|
SFJ » CMF Member Finland Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:09:18 PM |
|
Hmm i think you "need" some bikes carbs [suz/kawa/honda ..OR real DCOE etc :D
like --> http://www.youtube.com/watch?v=qxLZ3mzu7L8 |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:12:43 PM |
|
day 2

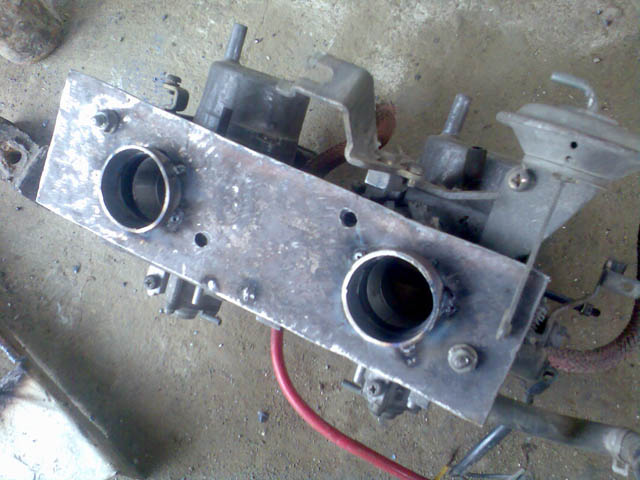

took out the useless stuff and starting with the flange. |
||
Image Attached:
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:14:30 PM |
|
well i was also thinking of using bike carbs but one of my friends gave me the honda carby so went on with it.. heheeh
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:15:58 PM |
|
still working on the manifold.. will post pics of update soon.
|
||
|
SFJ » CMF Member Finland Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 07 Feb 2009 01:19:19 PM |
|
you dont find " bolt on " jets to e'm needs soldering , drilling etc , and you find anything usefull jets to it whitout lambda .. and uses a LOT of fuel .. worth testing still .. ( whit out mot )
|
||
|
Micra_King » CMF Member Perth Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 12:44:47 AM |
|
Why would you want to go back to carbs?
|
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 01:41:15 AM |
|
more flow in theory? but looking at that i dunno about that setup. quad throttle.. yeh. but errr.. hmmm. will prob sound hectic if you get it running with that on there thou.
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 09:49:31 AM |
|
@ micra king
well first of all sir its because k11s are import cars here in our place and its pretty hard to get spare parts. second my throttleboddy was acting up since my maf sensors are down for the count.. third need more flow and finaly, efi tuners are a very rare breed here since the technology to tune ECUs are for people with VERY deep pockets xD |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 10:42:39 PM |
|
update..

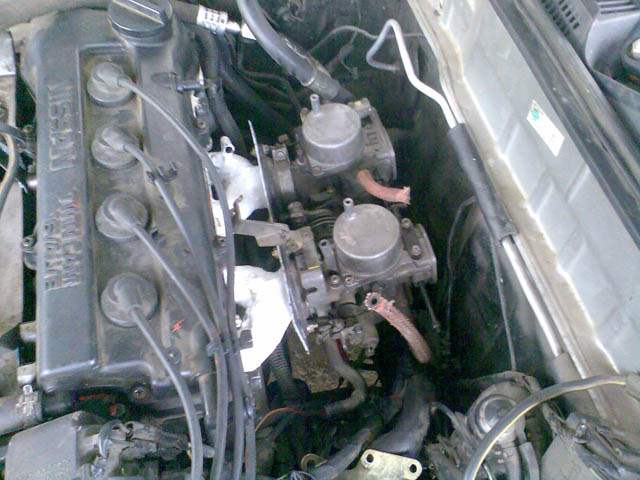

carb mounted.. still need to attach hoses and stuff.. |
||
Image Attached:
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 10:44:34 PM |
|
got the engine to start..
needs rejetting and more tunning.. http://www.youtube.com/watch?v=wqt3gdoBimw |
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 11:28:36 PM |
|
nice work!
|
||
|
Micra_King » CMF Member Perth Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 11:29:08 PM |
|
Well done you getting it up and running fast. Looks like the carbs could do with a full rebuild and clean to make sure your getting the best performance.
|
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 11:34:40 PM |
|
hey, is your car left hand drive? can't see the brake booster in any of the pics...
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 11:43:37 PM |
|
nice one aki ;-), i think most variable venturi carbs like those use the profile of the needle rather than jetsize for the metering/air fuel ratio (akin to the old SU carbs, which used 1 jet size and hundreds of different needle shapes) and the acceleration enrichment is controlled by the rate at which the dashpot is allowed to lift eh
frank |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 08 Feb 2009 11:56:11 PM |
|
@turbo
yes sir my k11 was already converted to left hand drive when i bought it. @frank i will keep that in mind sir and will check the needle settings too. thnx for the tip. @micra king yes i will be doing that sir.. im still under testing stage right now but i will do a full rebuild and cleaning when everything is set.. even planning to buff them up to make em shine :) |
||
|
SFJ » CMF Member Finland Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Mon 09 Feb 2009 06:25:21 AM |
|
that sounds fun :) , when you get it run ok , any positive improve on performance ? will really sound at least different ;) .. and eat fuel more ..
|
||
|
sportsclassic » CMF Member sydney Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Mon 09 Feb 2009 08:44:51 AM |
|
Akinari WROTE: "got the engine to start.. needs rejetting and more tunning.. http://www.youtube.com/watch?v=wqt3gdoBimw href="http://www.youtube.com/watch?v=wqt3gdoBimw" target=_blank>http://www.youtube.com/watch?v=wqt3gdoBimw" Hi Aki, what did you do with the ignition system? ecu wise. and i am guessing that you have a low pressure fuel pump now. |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Mon 09 Feb 2009 09:44:09 AM |
|
@SFJ
im not really concerned on fuel economy since im after the performance improvements.. and yes sound of the exhaust is different compared when it was still efi @sportsclassic im using stock ignition system sir.. will be changing to coil packs soon with msd when i save up some more cash xD.. and yes i changed the fuel pump since the stock one had too much psi |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Mon 09 Feb 2009 09:57:31 PM |
|
update:
omg i was shocked the engine was running lean with the stock jettings. i was expecting would would be flooded.. changed jets to 200 each and will be testing if its ok.. will update as soon as i get results.. |
||
|
sportsclassic » CMF Member sydney Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Mon 09 Feb 2009 10:08:24 PM |
|
Akinari WROTE: "update: omg i was shocked the engine was running lean with the stock jettings. i was expecting would would be flooded.. changed jets to 200 each and will be testing if its ok.. will update as soon as i get results.." hows the performance? |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Tue 10 Feb 2009 12:49:26 AM |
|
update:
right now im forced to chage to headers since the intake did a lot of improvements but the current exhaust is stock.. the engine is choking when i get the rev upto 4k due to over restrictive exhaust manifold..its like when you need to sneeze but there are a lot of booger on your nose that's clogging up the air flow :D will post pics soon.. |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 12 Feb 2009 05:20:42 PM |
|
update:
engine still running lean under 200 size jets. will turn it up a notch.. will update as soon as i get results.. |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 15 Feb 2009 08:11:49 PM |
|
update:
lol found the problem.. the timing was too far advanced and had to turn it down a bit.. now running under 155 jets and working fine.. better throttle response compared to the EFI. |
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 15 Feb 2009 08:22:04 PM |
|
whats it sound like with the carb's?
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 15 Feb 2009 08:50:18 PM |
|
@turbo
the "nismo" cams(winks..lol) you sent me are making the sound of the engine monstrous and a bit wild.. ill try get video with audio soon and upload it here.. |
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 15 Feb 2009 09:06:41 PM |
|
lol.. that would be mad
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 15 Feb 2009 10:47:12 PM |
|
update:

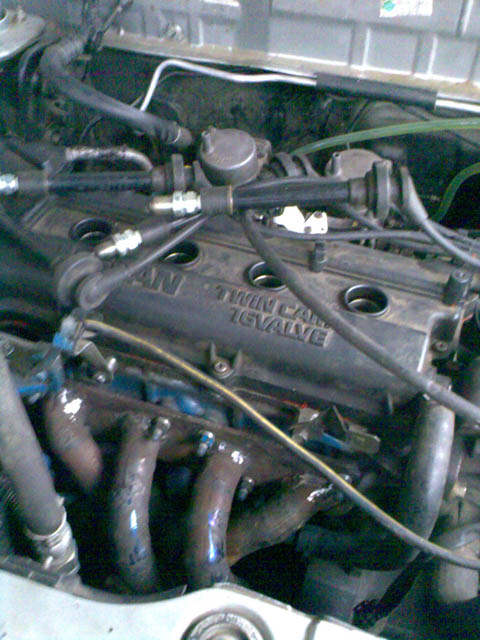

as promised pics of the headers.. |
||
Image Attached:
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Wed 18 Feb 2009 11:47:00 PM |
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Wed 18 Feb 2009 11:54:06 PM |
|
holly shit. you don't fuck around hey... we need video of you giving it some curry!
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 12:11:00 AM |
|
@turbo
will do sir.. got the heads ported and shaved a bit this morning so gonna get more vids as soon as we put the engine back together.. |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 12:17:59 AM |
|
hahahah anyway since engine not up yet.. i do have a pic of my bud feeding the car..
|
||
Image Attached:
|
||
|
Micra_King » CMF Member Perth Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 01:01:43 AM |
|
Fuck me it has a wrx sound to it in that video.
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 02:14:34 AM |
|
maybe it sounds like that cause my mufler is directly below the driver seat. no more pipe extension to the rear.. its just headers, a couple of feet of pipe, then muffler.
|
||
|
LonePhantom » CMF Member Canberra Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 07:32:55 AM |
|
LOL at the Coke! Damn I keep forgetting to check out your video. I really want to hear this carbie beast go. :-) Good luck with it all, hopefully you get some nice good reliable power out of it.
|
||
|
sportsclassic » CMF Member sydney Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 08:43:30 AM |
|
hi Aki, what did you do with the air flow meter, did you just disconect it?
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 09:33:36 AM |
|
@LonePhantom
thanks..i did get lots of power and instant throttle response compared to the efi. @sportsclassic well all sensors connected to the throttle body were removed since they are of no use anymore.. the only things connected to the ecu is the dizzy.. but will change it soon when we find some replacement dizzy that doesn't need the ecu to run it.. and maybe put an MSD so that i could play some more with the fueling.. |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Thu 19 Feb 2009 10:26:33 AM |
|
aki
your ecu might need the t/p/s signal to give you the right ignition curve eh frank |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Fri 20 Feb 2009 10:51:10 AM |
|
@frank
well ignition was running ok..havent been having trouble since the implant.. |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Fri 20 Feb 2009 10:58:53 AM |
|
update:
been having trouble since got the heads ported and shaved.. major improvements on the 3000 upto 7200 rpm.. BUT.. engine stalling if running the car below 3000 rpm.. hesitating and sounds like coughing.. but when i rev up the engine upto 3000 rpm and above, engine goes wild even outran my buds 1.2L honda hatchback last night with my rpms all out to 7200.. sad thing is undrivable in traffic bcoz engine dies if running it under 3000 rpm.. |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Fri 20 Feb 2009 11:21:42 AM |
|
aki
mine ran ok with a ported and 2mm skimmed head, are you sure the valve timing is,nt 1 tooth out, maybe ? frank |
||
|
LonePhantom » CMF Member Canberra Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Fri 20 Feb 2009 11:44:48 AM |
|
Well checked out that video, car sounds great. Hope you get the low RPM tuning sorted out so the car is drivable.
|
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 06:32:01 AM |
|
@frank
thanks for the tip sir.. will be checking on that as soon is i get home.. currently out of town and be back maybe by monday.. will also be checking the idle jets too maybe they are the ones causing the problems.. oh by the way, just to confirm, the timing chain count for cg10 is 9,7,11 right? thanks in advance |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 06:46:37 AM |
|

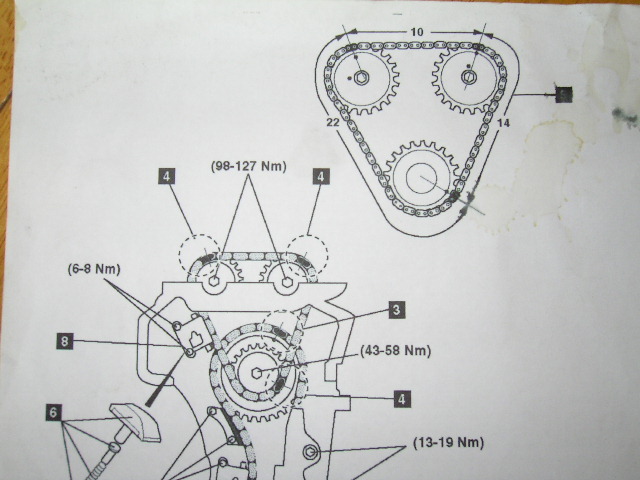

aki :-)
|
||
Image Attached:
|
||
|
Mickb » CMF Member Perth Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 10:26:52 AM |
|
Isn't it 5 at top, 7 front, 11/13 (cant remember) at rear?
|
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 11:10:49 AM |
|
Mickeybbb WROTE: "Isn't it 5 at top, 7 front, 11/13 (cant remember) at rear? " yeh true that's right.. but aki's got a cg10... maybe different? |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 11:28:07 AM |
|
@frank
is that for a cg10de sir? thank you! but the counts kinda different.. strange, maybe japan cg10 different? im dying to get back home to check it out.. 2 days of sleepless nights till i get home.. lols |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 11:48:08 AM |
|
Akinari WROTE: "@frank is that for a cg10de sir? thank you! but the counts kinda different.. strange, maybe japan cg10 different? im dying to get back home to check it out.. 2 days of sleepless nights till i get home.. lols" yeh aki, they,re all the same frank |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sat 21 Feb 2009 11:55:26 AM |
|
@frank
ok thanks a lot sir! cant wait to get back home this monday and check it out.. |
||
|
Akinari » CMF Member Iloilo Philippines Member since: Posts: |
Re: Akinari\'s EFI to Carb project |
Sun 01 Mar 2009 06:44:33 AM |
|
update:
took some time looking for the problem.. timing chain was fine.. new set of spark plugs, new set of high tension wires.. and found it at last! ..dizzy was f*cked up and had to be fixed.. my bud had to change what he called "condenser". all is well now but engine running a little lean since the port and shave, i guess more jet tuning have to be done.. anyways will post vid with the new rhythm of the engine when i get a chance.. |
||
