Fred's trubo install.... finally |
Sun 09 Mar 2008 09:18:51 PM |
|

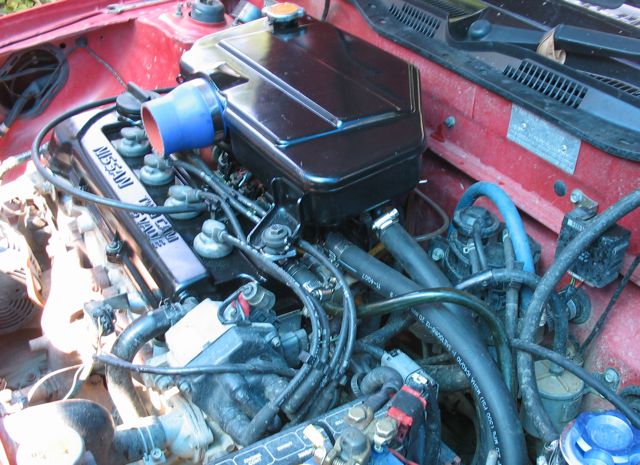

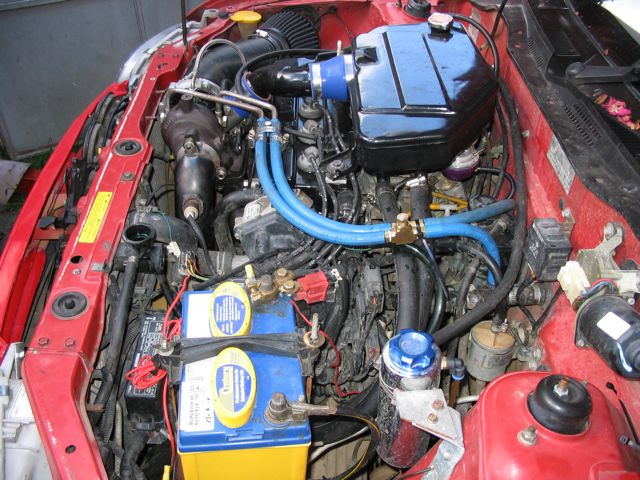

I'll throw the pix up.. highlights are

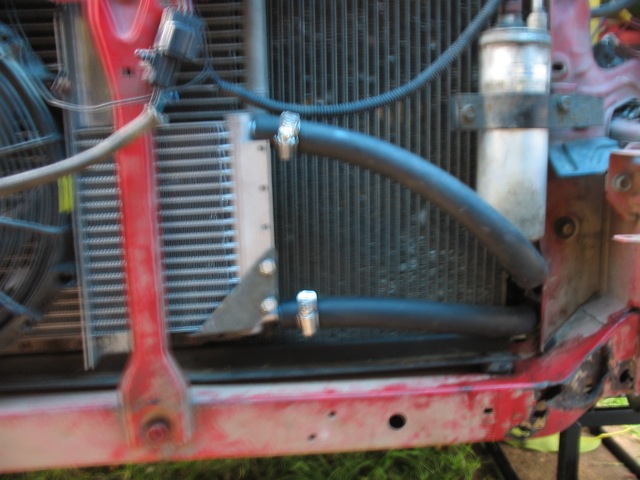

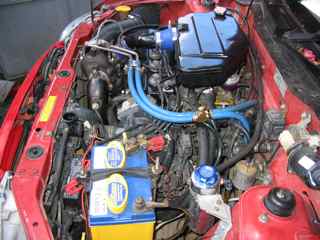

Ga15 tb Ga15 primera injectors Modded Liberty intercooler with 480x200 oil cooler (for intercooler radiator) and Ford euro water pump (17 l/min) Gt17 Turbo custom dump pipe (more work on that 2 come) notice air bleed valve on turbo water (since the water lines are level with top of radiator fill, to be safe) things to do.. heaps but immediately, dipstick handle.....GA16 AFM and all the electronics..... |
||
Image Attached:
|
||
|
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:19:24 PM |
|

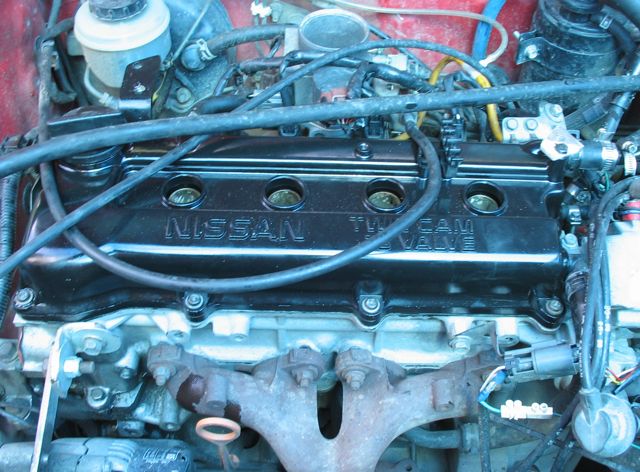

2.
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:19:59 PM |
|
3.
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:21:03 PM |
|

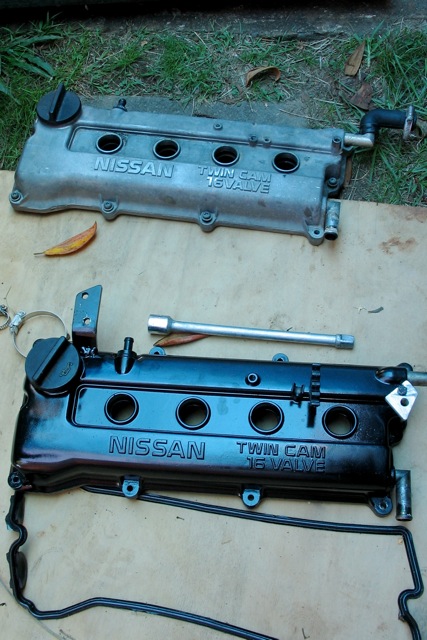

4.
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:21:37 PM |
|
5.
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:22:20 PM |
|
6.
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:22:59 PM |
|
7
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:23:21 PM |
|
8.
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:26:25 PM |
|
those last 2 bigger.....
|
||
Image Attached:
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:28:06 PM |
|

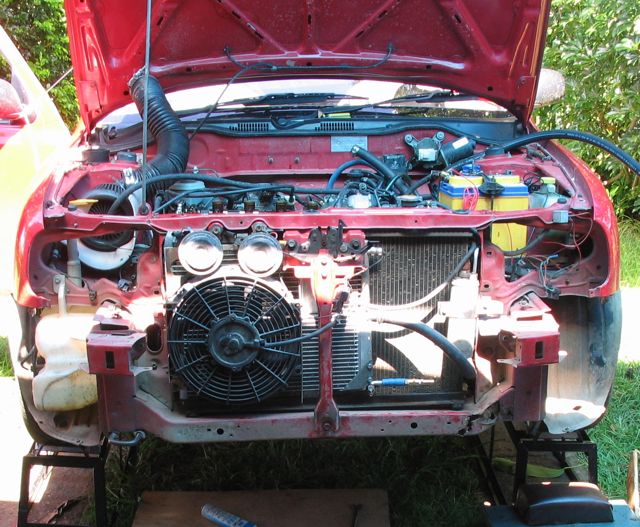

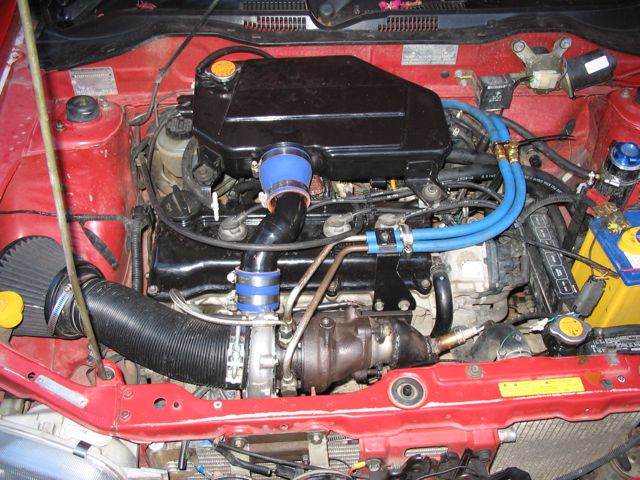

front on.... i have a new cross member to go on...if your worried.... and a heat shield for the turbo.... I'll put it on when I know everything is tight and ok
|
||
Image Attached:
|
||
|
Mickb » CMF Member Perth Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:29:07 PM |
|
Good 2 see mate, my project has been on hold for a bit now.. should be back in2 it soon. Gona move that battery? make a bit more room in there =)
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:29:41 PM |
|
Hay, do you thing I'd have the first trubo in Aus? So excited, left the spell checker off..... (remember: engage brain)
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 09:33:26 PM |
|
might move battery later... low priority... heaps of electronics to install and little standoffs for all the new plumbing.... so its not finished just working.... I gotta get a switch in for the pump..or no intercooler for work tomorrow...
|
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 11:29:47 PM |
|
looks neat mate, let us know when if you take it down the track. i'll come down and support team micra :)
|
||
|
Tony » CMF Member Brisbane Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sun 09 Mar 2008 11:40:29 PM |
|
Sorry off topic,Will be heading up to willowbank in roughly 4 weeks if anyones interested, Turbo?
I'm only spectating though,hey turbo remember that guy with the 2j inn the wagon,should be around 500rwhp |
||
|
turbo march-rolling shell » CMF Member brisbane Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 12:11:30 AM |
|
Tony WROTE: "Sorry off topic,Will be heading up to willowbank in roughly 4 weeks if anyones interested, Turbo? I'm only spectating though,hey turbo remember that guy with the 2j inn the wagon,should be around 500rwhp" nice... don't b a skirt. run ya car! |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 08:42:47 AM |
|
hmm track... don't wanna break anything.. its my daily (130km per day, type daily) had a nice morning to check running rainy and overcast..... everything ok... no leaks, about 4-5psi enough fuel so far.... off to the exhaust shop today to fix up a few things
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 07:25:19 PM |
|
home again. no leaks. exhaust guy was impressed with the neatness of the install.... did a preliminary performance run on way home.....
my best n/a 5-100 was 10.3 from memory (with 2" cat back was 10.85) first run using 4psi, not really trying (looking at boost and a/f meter) was 8.2sec to 100kph..... Impressive start imho. |
||
|
smidge » CMF Member Sydney Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 08:31:16 PM |
|
awesome fred! what's running the thing? stock comp?
i've got the front end off the car and have my little VF13 in around there sizing it up i REALLY wanna keep my aircon so i think it's gonna be tough.. thanks for the pics! i've got a WAIC setup sitting here but i'm getting FMIC ideas while the whole front end of the car is off keep us updated :D |
||
|
micrat » CMF Member Perth Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 08:46:21 PM |
|
looks great, i was going to use the exact same type of liberty intercooler when i was going to turbo my old super s (about 4 years ago). could you please put up some photos of the pipework between the throttle body and the intercooler and/or any mods to the intercooler with this regard. very curious to see how you did it.
well done,great idea, good job. |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 08:50:31 PM |
|
don't do the FMIC I have no lag... nothing... its like driving a bigger cc car. standard computer with jaycar fuel adjuster and display. as u can see i still have my a/c condensor so after it all settles down (dipstick rerouting and new airbox and plumback Bov) I'll get it plumbed back up...
the jaycar fuel adjuster gets a bit lost when cold but other than that very drivable..... please have a long look at dipstick location... it all gets very tight... if you want and dimmensions etc for waic let me know and I can take it off and measure it up... I gotta take it off anyway to get the head gases return right. |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 08:53:04 PM |
|
micrat... i posted those some months ago under 'fred has progress' or something like that.... If you want macro shots, let me know and I'll get em
|
||
|
smidge » CMF Member Sydney Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Mon 10 Mar 2008 10:56:49 PM |
|
yeah those pics are around somewhere of where he welded them up
hey fred still curious to know if you had to change any other vac related things like the charcoal canister or brake booster? did you have to put one way valves or any of that stuff in? just curious! cheers |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Tue 11 Mar 2008 08:32:30 AM |
|
no, but i did add a oil catch can on to the rear right vapour line (it initially conected to the airbox) and that line will return to preturbo after the new afm or maybe into the new airbox after the filter..... I change them since no one else anywhere has changed them... 4 example the brake booster preformance will not be affected since I can't remember when I'd be on boost and braking at the same time....well not since the morris 1100.......
its like a normal car off boost |
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Fred's trubo install.... finally |
Tue 11 Mar 2008 08:45:45 AM |
|
fred
i think you,ve done a very professional job there ! |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Tue 11 Mar 2008 08:59:45 AM |
|
ta, frank, goes great too....
|
||
|
egSi » CMF Member Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Wed 12 Mar 2008 08:58:51 AM |
|
looks awesome, well done :)
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Wed 12 Mar 2008 09:13:23 AM |
|
ta, only took me 20months...... can i use the ecuse...its my daily?
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Sat 15 Mar 2008 05:40:08 PM |
|
just installed adaptive turbo timer kit
installed turbo heat shield ... currently building pump controller for water injection... |
||
|
a888wei » CMF Member Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Wed 02 Apr 2008 02:10:53 PM |
|
nice work!!! is that all diy? how much power at the wheel?
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Wed 02 Apr 2008 03:47:29 PM |
|
yep, all my own work (except for the welding) ... as for power... I'm still only in setup mode, 4psi.... when the water injection/boost control/programmable ignition go on, I'll get it dynoed... it currently has enough fuel along the rev range and it doesn't ping, so its safe enough for now.... but 7psi would be heaps choice.... oh, just installed exhaust gas temperature cage...next is a knock sensor and then a g-tech RR to round it all off. (i guess power is about 70-80kw.... maybe)
|
||
|
smidge » CMF Member Sydney Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Wed 02 Apr 2008 04:20:24 PM |
|
how did you limit the boost to 4psi? tricky actuator setup or venting air somewhere?
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: Fred's trubo install.... finally |
Wed 02 Apr 2008 09:40:21 PM |
|
um..the actuator was actually set like that... from a saab 95 i think...
|
||
