Technical Forums» Aesthetics» Dash panel bulb holders / LED - where to buy
|
detach8 » CMF Member Singapore Member since:  Posts:  |
Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 04:01:33 AM |
|
I changed out the stock bulbs to some chinese high brightness bulbs and they melted the original bulb holders. I had a really hard time searching for the bulb holder's specs and was wondering if anybody knows what exactly it is?
I found this, does it look correct? http://www.crazyleds.co.uk/catalog/product_info.php?cPath=114&products_id=568 I'm kinda desperate cos the bulbs are really darn hot and would probably melt my dash in another month! |
||
|
|
||
|
detach8 » CMF Member Singapore Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 04:50:29 AM |
|
Somehow I think this looks like it
http://www.ultraleds.co.uk/automotive-bulbs-501194t10w5w-10mm-wedge-c-101_129.html 501 10mm wedge. Am I correct? If I am, I'm gonna grab a bunch of these... |
||
|
nz_aj » CMF Member Auckland New Zealand Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 09:25:44 AM |
|
Solder some LED's onto the tracks & also hot melt glue in place if necessary?
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 09:51:35 AM |
|
detach8
i think they are 286 fittings http://www.ultraleds.co.uk/wide-angle-high-ultimate-wedge-xenon-white-p-1682.html |
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 03:43:12 PM |
|
http://rover.ebay.com/rover/1//1?icep_ff3=2&toolid=10001&campid=5337873294&icep_item=300196970304
i got a set and they bolt straight in |
||
|
littlebear » CMF Member Adelaide Australia Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 08:12:13 PM |
|
Hey sikK11, how do they look -how's the brightness?
Cheers, Matt. |
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 08:23:01 PM |
|
will get a photo for ya they came today so just putting them in now
|
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 09:05:31 PM |
|

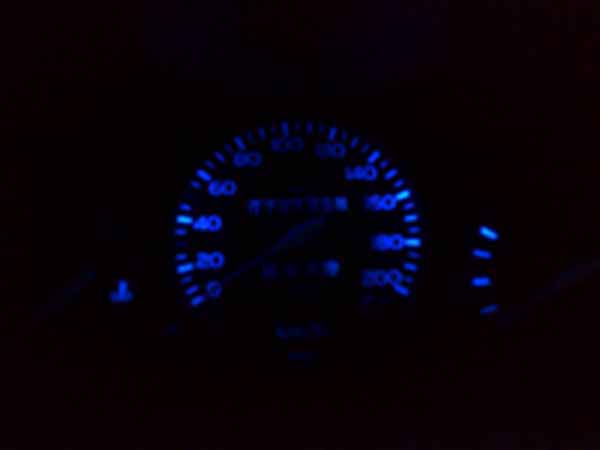

here it is i will post the link up again cos i think i posted the wrong one. They look great took 2 minutes to install and not to bright plus available in several colors.
|
||
Image Attached:
|
||
|
sikK11 » CMF Member Darwin Australia Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 11 Feb 2008 09:08:17 PM |
|
http://www.crazyleds.co.uk/catalog/product_info.php?cPath=101&products_id=509
that is their web site but they posted them for sale on Ebay. That is the kit i brough was around 15 bucks delivered. Well worth it i say |
||
|
detach8 » CMF Member Singapore Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Tue 12 Feb 2008 01:12:09 AM |
|
well nobody has answered my qn yet,is the holder (i melted my plastic holders) 501 (10mm) or 509 (5mm)?
|
||
|
frank2 » CMF Member birmingham United Kingdom Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Tue 12 Feb 2008 02:18:29 AM |
|
detach8
check my post ? 286, 5mm and mine had 2x 10mm ones as well |
||
|
detach8 » CMF Member Singapore Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Tue 12 Feb 2008 04:31:48 AM |
|
hmm sorry frank, missed your reply
it does not look that small mine has 4x10mm bulbs for the dash lights (not the indicator/signal/etc lights) |
||
|
detach8 » CMF Member Singapore Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Tue 12 Feb 2008 06:17:37 AM |
|
ok i just confirmed they are 4xT10 bulbs for the dash background lights
signal indicators use T10 as well the little indicators at the bottom row has 3xT5 i just got a few custom made LEDs (2 LEDs per socket) and they fit nice, but like the pic above there's a small area near the 100km/h mark that's pretty dim. that's because the odo mechanism is in the way. could do better with a wide angle LED bulb like these maybe, has anybody tried? http://www.ultraleds.co.uk/501194t10-mini-light-tower-leds-xenon-white-p-1545.html i also replaced the auto gearbox bulb with 1xLED T10 and it looks fantastic now, just pure bright white. oddly the dash looks abit blue-ish even though my bulb's white... |
||
|
Peter Felix » CMF Member Pakistan Member since: Posts: |
Re: Dash panel bulb holders / LED - where to buy |
Mon 21 Apr 2008 07:59:33 PM |
|
detach8 I own a Nissan March (Japanese domestic model)1997/98 model. Could you please inform where Singapore can you buy the Led bulbs? I need normal size LEDs for the meter cluster and smaller Leds for the Automatic Gear Position indicators which are located just below the KM counter in the speedometer. Secondly, what is the cost of these Leds? I can ask someone to pick these up for me on their next visit to Singapore. Thanks in advance. Regards, Peter Karachi |
||
