custom fuel rail |
Mon 22 May 2006 02:11:31 AM |
|
anyone can help in custom make a fuel rail which can fit a s13 sr20det 370 cc fuel injector?
thank you |
||
|
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: custom fuel rail |
Mon 22 May 2006 05:21:48 PM |
|
looking at the sr20de fuel rail that i have, it would be a very simple mod. That is becaue the injector spacing is the same to the cg except for injectors 2-3, so a simple cut and collar braised on would do it. the mounting holes just need to be flattend and resized and your away. well, that's what ! plan, anywho. (was going to do a complete custom job with hsv ls1 injectors (330cc/min) but the sr20de (325cc/min) will be easier). just a few more bits to buy before it goes together.
|
||
|
sukoo » CMF Member Singapore Member since: Posts: |
Re: custom fuel rail |
Tue 23 May 2006 10:28:37 PM |
|
fred WROTE: "looking at the sr20de fuel rail that i have, it would be a very simple mod. That is becaue the injector spacing is the same to the cg except for injectors 2-3, so a simple cut and collar braised on would do it. the mounting holes just need to be flattend and resized and your away. well, that's what ! plan, anywho. (was going to do a complete custom job with hsv ls1 injectors (330cc/min) but the sr20de (325cc/min) will be easier). just a few more bits to buy before it goes together." i am from singapore tink finding a sr20 de fuel rail will be slighlty difficult how abt sr20 det fuel rail? any way possible of you to take some picture n show it here a few picture tink will speak a thousand words thank you |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: custom fuel rail |
Fri 26 May 2006 03:41:38 PM |
|
opps, sorry for delay.... will find my camera and take a few... the sr20det fuel rail should be the same spacings (just larger 370cc/min injectors) i'll do it tonight when i get home and post them showing them against the intake manifold template i have.
|
||
|
gu_niang1200 » CMF Member Bedok Nth Singapore Member since: Posts: |
Re: custom fuel rail |
Sun 28 May 2006 07:22:26 PM |
|
sukoo WROTE: "anyone can help in custom make a fuel rail which can fit a s13 sr20det 370 cc fuel injector? thank you" sukoo WROTE: " fred WROTE: "looking at the sr20de fuel rail that i have, it would be a very simple mod. That is becaue the injector spacing is the same to the cg except for injectors 2-3, so a simple cut and collar braised on would do it. the mounting holes just need to be flattend and resized and your away. well, that's what ! plan, anywho. (was going to do a complete custom job with hsv ls1 injectors (330cc/min) but the sr20de (325cc/min) will be easier). just a few more bits to buy before it goes together." i am from singapore tink finding a sr20 de fuel rail will be slighlty difficult how abt sr20 det fuel rail? any way possible of you to take some picture n show it here a few picture tink will speak a thousand words thank you " sukoo WROTE: " fred WROTE: "looking at the sr20de fuel rail that i have, it would be a very simple mod. That is becaue the injector spacing is the same to the cg except for injectors 2-3, so a simple cut and collar braised on would do it. the mounting holes just need to be flattend and resized and your away. well, that's what ! plan, anywho. (was going to do a complete custom job with hsv ls1 injectors (330cc/min) but the sr20de (325cc/min) will be easier). just a few more bits to buy before it goes together." i am from singapore tink finding a sr20 de fuel rail will be slighlty difficult how abt sr20 det fuel rail? any way possible of you to take some picture n show it here a few picture tink will speak a thousand words thank you " yo pics of fuel rail i wanna ... you guys seen this spoiler fro march befor?? |
||
|
sukoo » CMF Member Singapore Member since: Posts: |
Re: custom fuel rail |
Fri 09 Jun 2006 07:54:13 AM |
|
fred WROTE: "opps, sorry for delay.... will find my camera and take a few... the sr20det fuel rail should be the same spacings (just larger 370cc/min injectors) i'll do it tonight when i get home and post them showing them against the intake manifold template i have." ok thank you and jus to check wif u wat the injector flow rate for sr20de injector? and the size of the injector is the same for both? thank you |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: custom fuel rail |
Sat 10 Jun 2006 09:56:51 PM |
|

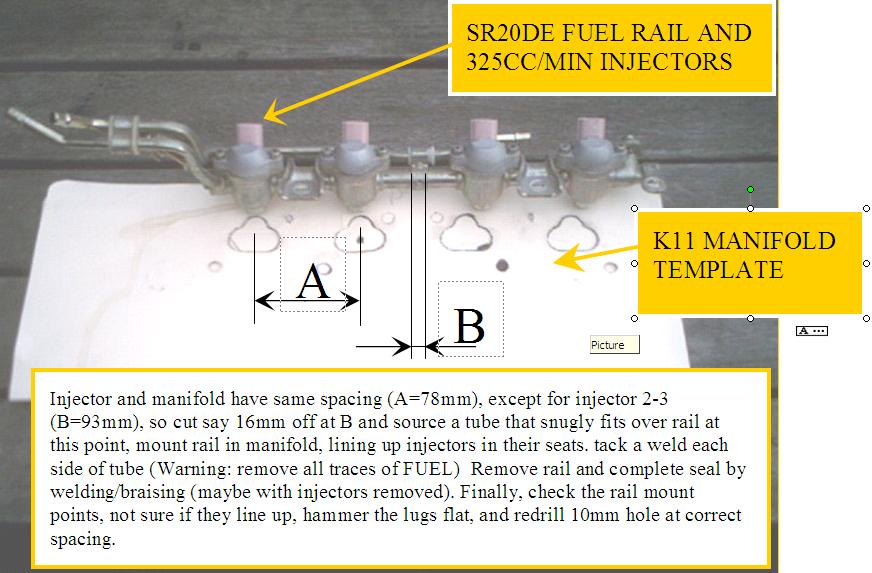

sorry again guys...been sick.. finally here is a pic of my thoughts... which will be carried out quite soon (as soon as I localte a K11 intake manifold to mount all the intake mods up on)
first time uploading an image, so i hope it works it image is a bit cr#ppy but u get the idea hope the canberra meet goes great! |
||
Image Attached:
|
||
|
micrat » CMF Member Perth Australia Member since: Posts: |
Re: custom fuel rail |
Sun 11 Jun 2006 09:31:09 AM |
|
Which model sr20 supposingly has the same injector spacing between cylinder pairs 1-2 and 3-4? I have 3 types of sr20's (GTI-R, S13 and N15) and all of them have all injectors spaced further apart not just 2 and 3 as you have suggested. I am not saying that you are wrong but can you please advise which model your fuel rail is from.
|
||
|
sukoo » CMF Member Singapore Member since: Posts: |
Re: custom fuel rail |
Mon 12 Jun 2006 06:19:25 AM |
|
micrat WROTE: "Which model sr20 supposingly has the same injector spacing between cylinder pairs 1-2 and 3-4? I have 3 types of sr20's (GTI-R, S13 and N15) and all of them have all injectors spaced further apart not just 2 and 3 as you have suggested. I am not saying that you are wrong but can you please advise which model your fuel rail is from. " tink tis fuel rail belong to sr20de which is the non turbo version engine |
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: custom fuel rail |
Tue 13 Jun 2006 07:05:28 PM |
|
sorry, micrat, on previous posts on this thread, I said it was a SR20DE...ie 2.o l Non turbo... saw the motor it came off n everything.... and see... the photo... think model of car is the s13. Obviously there are a number of manifolds kicking around, thankfully the one I found was suited to my purposes.
|
||
|
fred » CMF Member Murwillumbah Australia Member since: Posts: |
Re: custom fuel rail |
Tue 11 Jul 2006 10:01:48 PM |
|
Finally making progress... I was able to locate a cg13de engine from the wreakers.... with intake and exhaust manifolds on it... so now I have the intake off.. I have made the cut to the SR20DE fuel rail and bingo the injectors sit 98% spot on the K11 o rings in the manifold... just have to redrill the mounting holes and re-weld the rail shut.. pix comming.
|
||
