pictures of my wide arch turbo super s |
Tue 21 Jun 2005 06:36:52 AM |
|

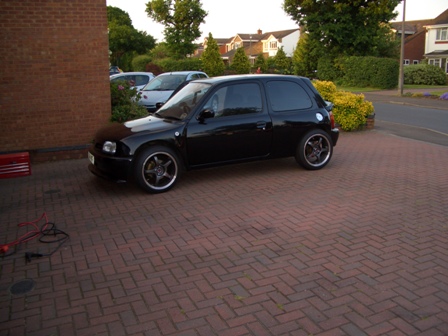

heres some picks of my wide arch turbo'd supers, hope u like, project not quite finished
|
||
Image Attached:
|
||
|
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 07:17:06 AM |
|

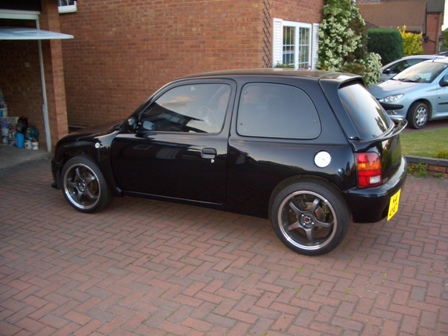

side
|
||
Image Attached:
|
||
|
makes » CMF Member Gold Coast Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:21:47 AM |
|
Your car looks very impressive. I am sure it goes well also with the turbo conversion.
This looks like a micra Batman or Darth Vader would drive !... :) |
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:40:08 AM |
|

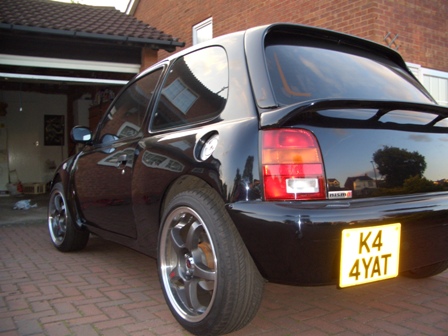

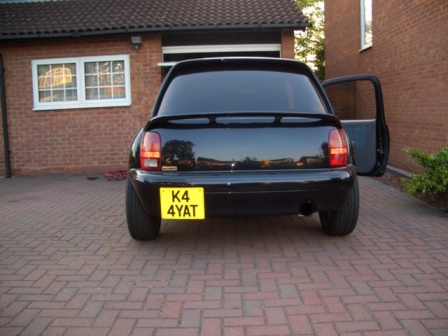

rear
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:40:55 AM |
|
rear
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:48:29 AM |
|

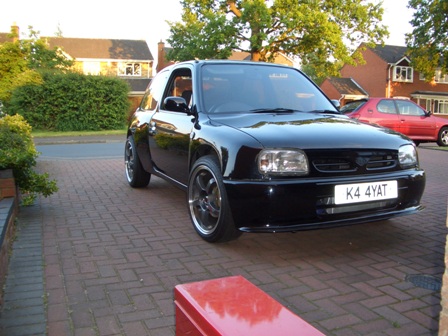

front, will be lowered further when front coilovers fitted
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:49:05 AM |
|
front
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:49:47 AM |
|

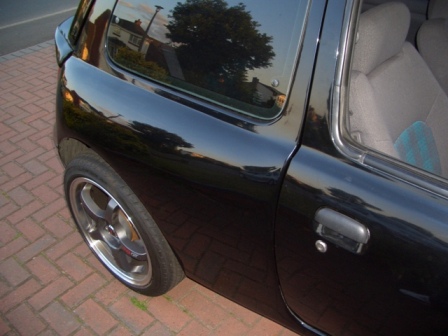

rear arch
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:51:27 AM |
|

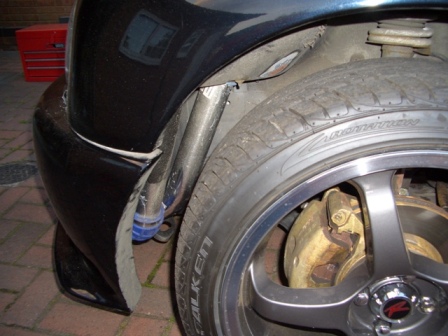

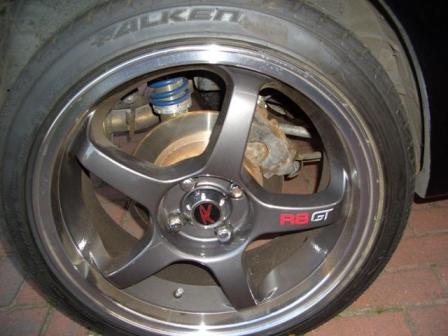

rear coilover fitted
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:52:04 AM |
|
whiteline gear
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:52:45 AM |
|

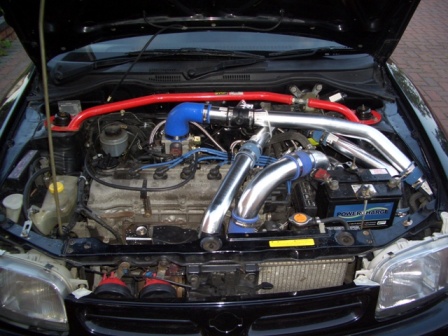

intercooler pipework
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:53:34 AM |
|
t20 turbo
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:54:20 AM |
|

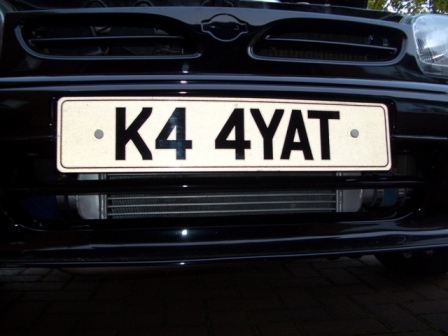

fmi
|
||
Image Attached:
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 09:04:05 AM |
|
full spec
full wide arch bodykit, with lengthened axles and driveshafts etc, 60mm wider on each side, rear mid spoiler, top spoiler to be added to super s. front gtir calipers and discs, rear disc conversion, rear coilovers, front being fitted next week, (coilovers utilise the original koni dampers using a sleeve + competition springs), full whitleine gear: camber, caster/antilift, control brace, fron and rear anti sway bars, omp strut brace. t20 turbo conversion, using standard injectors + 2 additional injectors, fuelling + timing controlled by aic and dastek unichip. adj fuel pres reg, dump valve. will replace the standard injectors for ga16 remap and up the boost to 1 bar. (eventually custom fuel rail and standalone ecu). blew standard headgasket at 8psi running 150 bhp at flywheel, will get car back tommorow with 2mm kappatsu headgasket and will fit avcr boost controller car next week is getting jun flywheel, exedy clutch, and ap suretrack lsd. am hoping for about 185bhp at flywheel which i will be content with as the real fun in driving this car is the handling. will post some more pics when its finished. |
||
|
White Knight » CMF Member Perth Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 09:53:44 AM |
|
One hell of a mean looking Micra.
Great job. Take no prisoners. |
||
|
Tseq » CMF Member Athens Greece Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 04:39:39 PM |
|
The black colour looks awesome.Not sure about the rear mid spoiler because it has no use at this position.What are these competition springs that you use on the coilovers?
Respect. |
||
|
micrasie » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 07:15:46 PM |
|
dam would`nt like to meet that down a dark ally.
nice one ;) |
||
|
Micra_King » CMF Member Perth Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 07:49:53 PM |
|
Thats one mean looking micra. Top work.
|
||
|
jamm'n » CMF Member Brisbane Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:24:51 PM |
|
Haha.
Not everything has to have a purpose. That "rear mid spoiler" looks HOT-AS mate. Theres nut'n i don't like about this car, except the ride height but that'll be sorted soon. Excellent ride mate. matty. |
||
|
cisco » CMF Member Canberra Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:35:56 PM |
|
That's a really nice smooth wide body kit..
Where'd you source that from? |
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:41:20 PM |
|
thanks cisco, it was sourced from west midlands motorsport, and are used for the rally micras, mine is the first road going version in the uk (front bumper, front and rear panels, rear bumper modified, alot of work to get it on) wasnt keen on bodykits but this is functional and the car now has unbeleivable handling and alot more stability at high speed due to the wider track conversion (not spacers but wider axles). as u know i have a feeling this car will be an ongoing project, but the next step for me is stripping the interior and making it as light possible.
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 08:42:02 PM |
|
its the same kit as the white rally car on the front page
|
||
|
cisco » CMF Member Canberra Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 09:38:02 PM |
|
Awesome stuff.
Do West Midlands Motorsport also sell the wider driveshafts etc? Or did you grab shafts from another nissan with a wider track such as a pulsar/almera etc? |
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 21 Jun 2005 10:31:28 PM |
|
i dont know where they sourced the wider driveshafts from, but they did all the work for me, they are gonna fit the lsd, flywheel and clutch next week so i will ask them where they were sourced from, everything the do tends to be custom made.
|
||
|
evade » CMF Member Melbourne Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Wed 22 Jun 2005 12:18:01 AM |
|
looks cool mate,
how do you get flywheel hp figures? or are your dyno's up there just calibrated up? i think in UK powerfigures from dyno's or rolling roads as you call them are quoted at the flywheel more often than not..while here in aus we go by power at the wheels..which is a more realistic figure just wondering |
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Wed 22 Jun 2005 02:19:33 AM |
|
yeah tru, read out gives u both flywheel and at the wheels, for some reason mine is losing alot of power from fly to wheels, i think its only 107 at wheels which is loss of nearly 30%, might be cos i have got 17"s wheels
|
||
|
new2micra » CMF Member Brisbane Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Wed 22 Jun 2005 08:55:46 AM |
|
Matey, that's such a brill car. Great work.
|
||
|
ricardo_Swarez » CMF Member United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Fri 24 Jun 2005 03:37:38 AM |
|
how much did it all cost, that my friend is one if not the nicest micra i've ever seen, good that its in black as it looks mean, it has a massive ass, pure j-lo...oh an whats ur full addres an wen are u likely to be out but the car be at home? hahaha jk :p
|
||
|
micrasie » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Fri 24 Jun 2005 09:38:57 PM |
|
is there a web address for west mids m/sport better still were in w/mids is it ? cheers
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Sat 25 Jun 2005 04:21:00 AM |
|
kidderminister, just type it in to google search, 1st one to pop up, they are 205 rally experts
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Sat 25 Jun 2005 04:23:37 AM |
|
thanks for all the nice comments, i have to admit im getting abit depressed with all the time and work and MONEY thats gone into the car and its still not there yet, but what can u do, im sure when the car is running sweet ill be more happy
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Thu 30 Jun 2005 09:30:53 AM |
|
car will be back on the road in 2 weeks time, front intercooler is being repositioned to allow bumper to go back on properly, battery to boot to allow for filter to be positioned to front of engine bay, 1.6 primera injectors replacing standard injectors, uprated walbro feul pump 255lh, front coilover kit to slam the fron as far as it will go, avcr boost controller running low boost 0.5bar and high boost 1bar, flywheel, exedy cluth and ap surtrack lsd. hopefully car will be flying and im gonna enjoy it for year before stripping interior.
|
||
|
Snoopy » CMF Member Australia Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Tue 19 Jul 2005 08:51:07 PM |
|
Sweet micra dude. just a question about the rear brake convertion, did you have to source a new proportioning valve to suit the disc brakes & different master cylinder?
|
||
|
ayat » CMF Member birmingham United Kingdom Member since: Posts: |
Re: pictures of my wide arch turbo super s |
Wed 20 Jul 2005 04:58:26 AM |
|
nope
|
||
